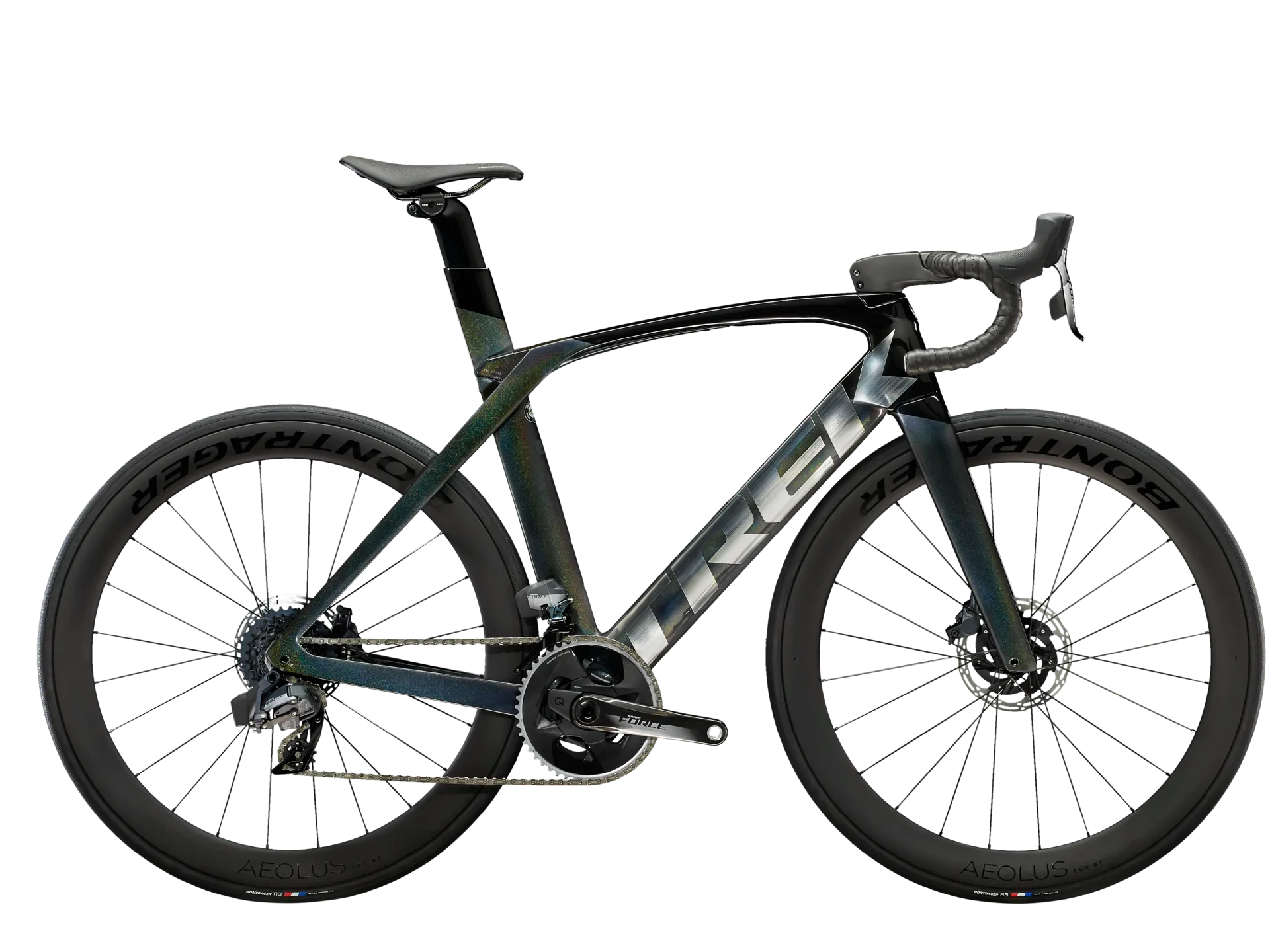

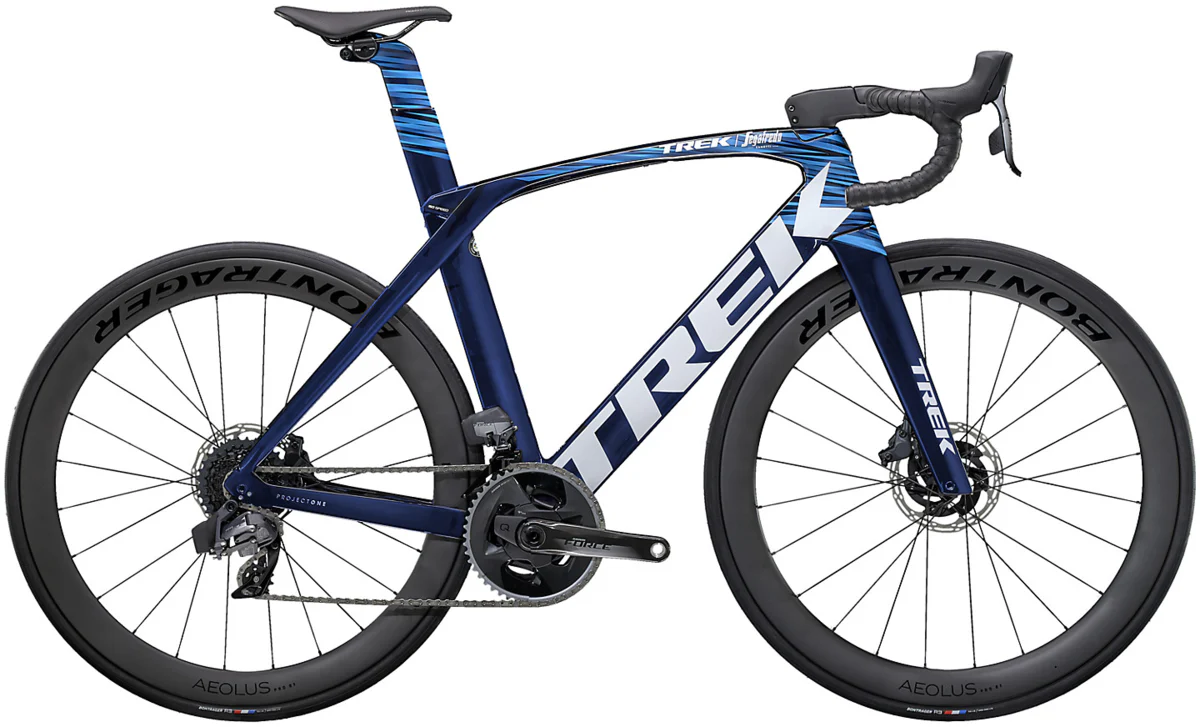

The Madone SLR 7 Disc eTap is ultralight, insanely fast and super smooth. This carbon road bike is built with our all-new 800 Series OCLV Carbon aero frame, adjustable Top Tube IsoSpeed, hydraulic disc brakes for all-weather stopping power and control and an wireless electronic SRAM drive train for fast and reliable shifting.
You're serious about speed, and you want our best aero frame. You also want the precision, predictability, and smoother gear progression of SRAM's 12-speed Force eTap AXS fully wireless electronic drivetrain.
Our lightest-ever 800 Series OCLV Carbon frame with Kammtail Virtual Foil aerodynamic tube shaping, road-smoothing Adjustable Top Tube IsoSpeed, and invisible cable routing. A 2x12 SRAM Force eTap AXS wireless electronic drivetrain, a SRAM Force AXS power meter, hydraulic disc brakes, tubeless ready Bontrager Aeolus Pro 5 carbon wheels, and an adjustable aero bar and stem.
Madone SLR is our best and lightest aero frame, but it's the SRAM Force AXS drivetrain that sets this model apart. You get the performance advantage of wireless electronic shifting, a 12-speed cassette, and a SRAM Force AXS power meter.
*Please note – spec applies to all sizes unless listed separately
FRAMESETE-SYSTEMCOMPONENTS**Weights are based off pre-production products at time of publication. Weights may vary in final production.
| *Saddle | Size: 47, 50, 52 Bontrager Aeolus P2 Elite, 155 mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145 mm width |
|
| *Seatpost | Size: 47, 50, 52, 54, 56 Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, short length |
| Size: 58, 60, 62 Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, tall length |
|
| *Handlebar | Size: 47 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38 cm width |
| Size: 50, 52 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width |
|
| Size: 54, 56, 58 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width |
|
| Size: 60, 62 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47, 50, 52, 54 Trek Madone aero, invisible cable routing, 7-degree, 90 mm length |
| Size: 56, 58 Trek Madone aero, invisible cable routing, 7-degree, 100 mm length |
|
| Size: 60, 62 Trek Madone aero, invisible cable routing, 7-degree, 110 mm length |
|
| Brake | SRAM Force eTap AXS hydraulic disc |
| Brake rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
WHEELS| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
|---|---|
| *Wheel rear | Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle |
|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm |
| Max tyre size | 28mm |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| Shifter | SRAM Force eTap AXS, 12-speed |
|---|---|
| Front derailleur | SRAM Force eTap AXS, braze-on |
| Rear derailleur | SRAM Force eTap AXS, 36T max cog |
| *Crank | Size: 47 SRAM Force AXS Power Meter, 48/35, DUB, 165 mm length |
| Size: 50, 52 SRAM Force AXS Power Meter, 48/35, DUB, 170 mm length |
|
| Size: 54, 56, 58 SRAM Force AXS Power Meter, 48/35, DUB, 172.5 mm length |
|
| Size: 60, 62 SRAM Force AXS Power Meter, 48/35, DUB, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12 speed |
| Chain | SRAM Force, 12-speed |
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
|---|---|
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle |
| Weight | 56 – 8.20 kg/18.08 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 275 pounds (125 kg). |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
