Domane AL 5 Disc is fast, smooth, and confident. Our best alloy Domane is built with a race-worthy Shimano 105 groupset, powerful hydraulic disc brakes, and a vibration-absorbing fork and handlebar to keep you feeling fresh on long, competitive rides.
ou want a comfortable, high-performance alloy road bike built with higher-end components. You're planning to crank out lots of fun, fast miles on pavement and even light gravel rail trails.
A 2x11 Shimano 105 drivetrain has a wide range of gears for riding on any terrain. The lightweight aluminum frame has fender mounts and a stable Endurance Geometry for a confident, comfortable ride. Plus, tubeless ready rims and hydraulic disc brakes for stopping power in any conditions. A carbon fork and IsoZone handlebar absorb fatiguing road vibration.
Our best aluminum Domane boasts race-worthy parts and a comfortable ride quality that can’t be matched on long rides and rough roads.
*spec applies to all sizes unless otherwise noted**Trek Bikes reserves the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
FRAMESET

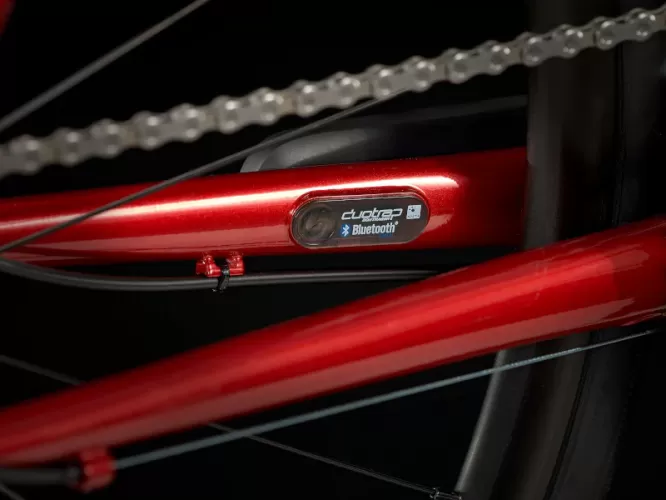

| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame fit | Endurance |
COMPONENTS
| *Saddle | Size: 44, 49, 52 Bontrager P3 Verse Comp, steel rails, 155mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145mm width |
|
| *Seatpost | Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length |
| Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
|

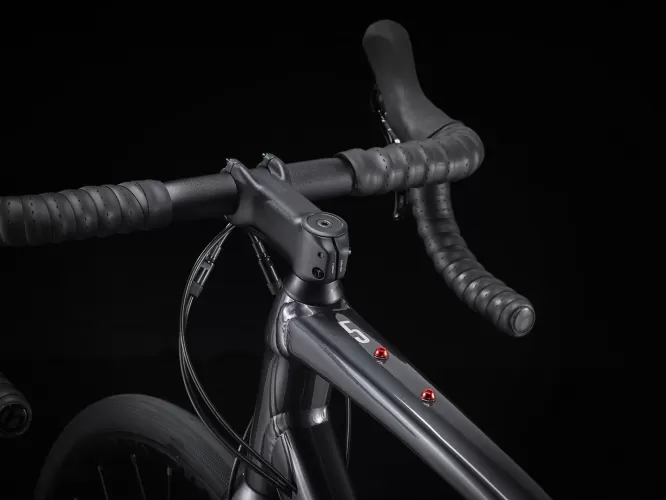

| *Handlebar | Size: 44, 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width |
| Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width |
|
| Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width |
|
| Size: 58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
| Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake rotor | Shimano SM-RT70, centerlock, 160mm |
WEIGHT
| Weight | 56 - 10.05 kg / 22.16 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
DRIVETRAIN
| Shifter | Shimano 105 R7020, 11 speed |
|---|---|
| Front derailleur | Shimano 105 R7000, 31.8mm clamp |
| Rear derailleur | Shimano 105 R7000, long cage, 34T max cog |
| *Crank | Size: 44 Shimano 105 R7000, 50/34 (compact), 165mm length |
| Size: 49, 52 Shimano 105 R7000, 50/34 (compact), 170mm length |
|
| Size: 54, 56 Shimano 105 R7000, 50/34 (compact), 172.5mm length |
|
| Size: 58, 61 Shimano 105 R7000, 50/34 (compact), 175mm length |
|
| Bottom bracket | Shimano RS500, 68mm, threaded external |
| Cassette | Shimano 105 HG700-11, 11-34, 11 speed |
| Chain | Shimano HG601 |
WHEELS
| Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Rim | Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, presta valve |
| Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve |
|
| Spokes | 14g stainless steel |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
| Max tire size | 35c without fenders, 32c with fenders |
|
Size |
Rider Height |
Inseam |
|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
|
49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
|
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
|
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
|
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
|
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
|
61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
