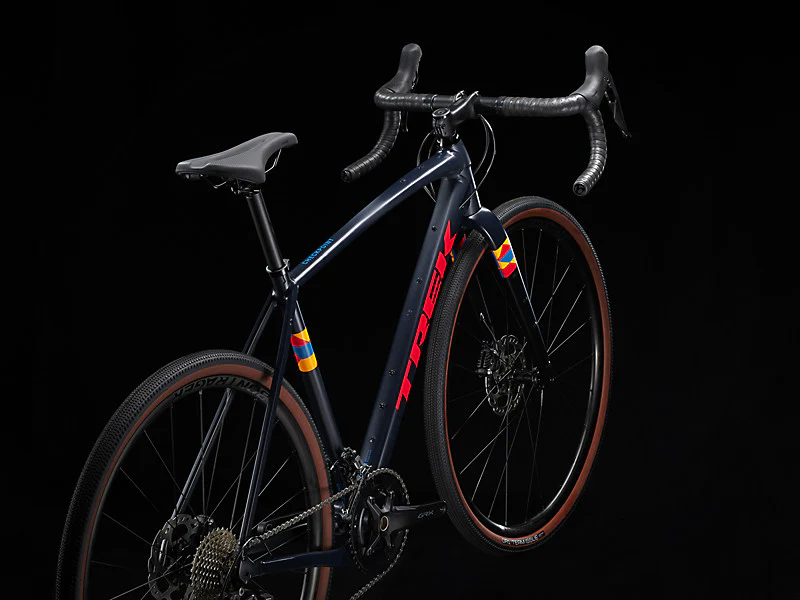

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.
Unlike the pure roadie who measures watts and weighs out meals, you favor epic off-road adventures that probably end with a beer and a burrito. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned dollar, including quality, versatility, durability, and a ridiculous amount of fun.

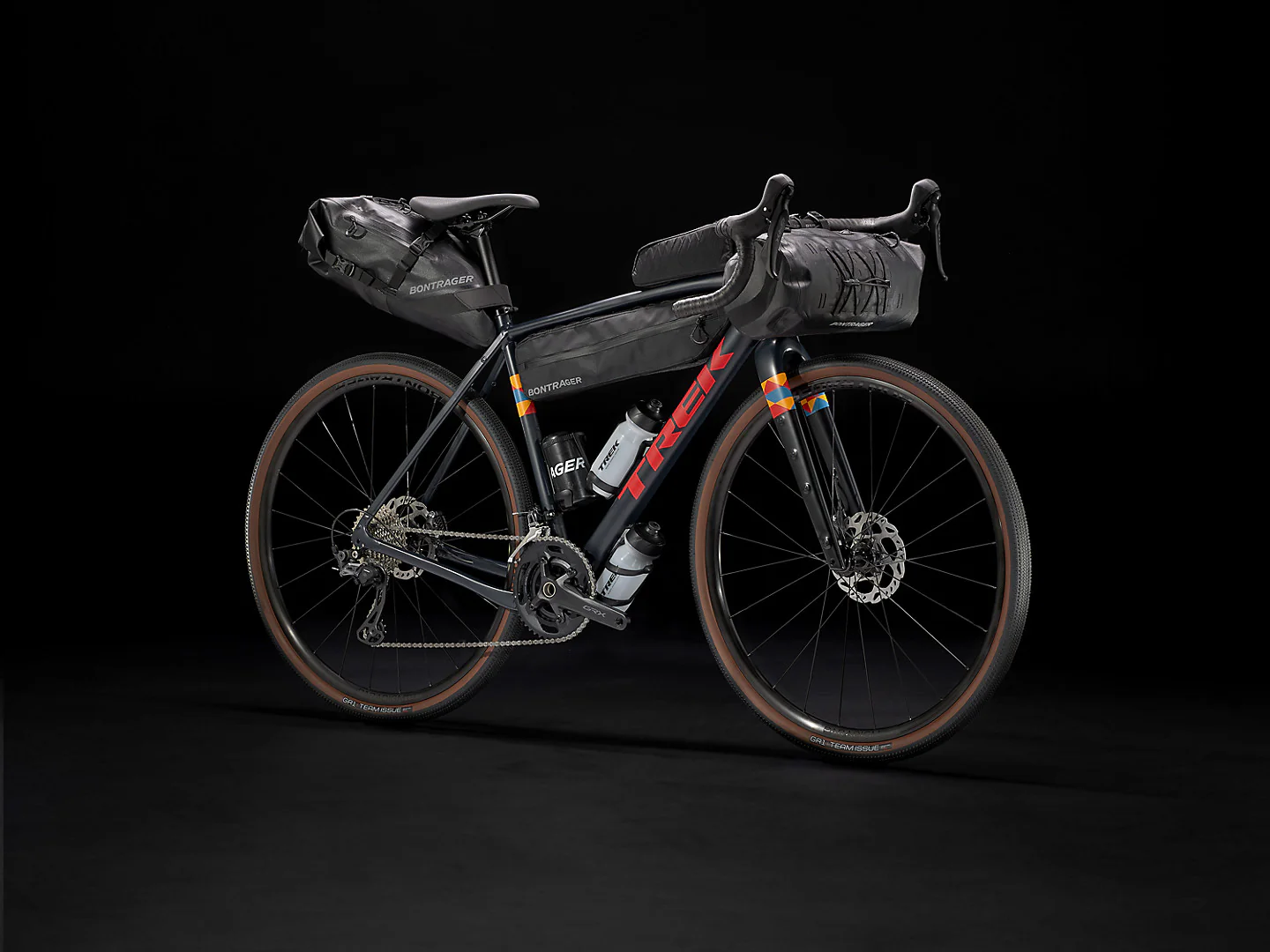

A sturdy aluminum frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and fender mounts and integrated frame bag mounts, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless ready rims, and wide 700x40c gravel tires for added stability and traction.
If the amount of adventure you can get per dollar spent is a priority for you, you won't do better than Checkpoint ALR 5. Quality parts, a durable alloy frame, and a wealth of features like extra tire clearance and customization options— so you can confidently take on bigger, better adventures.
*spec applies to all sizes unless listed separately
FRAMESET

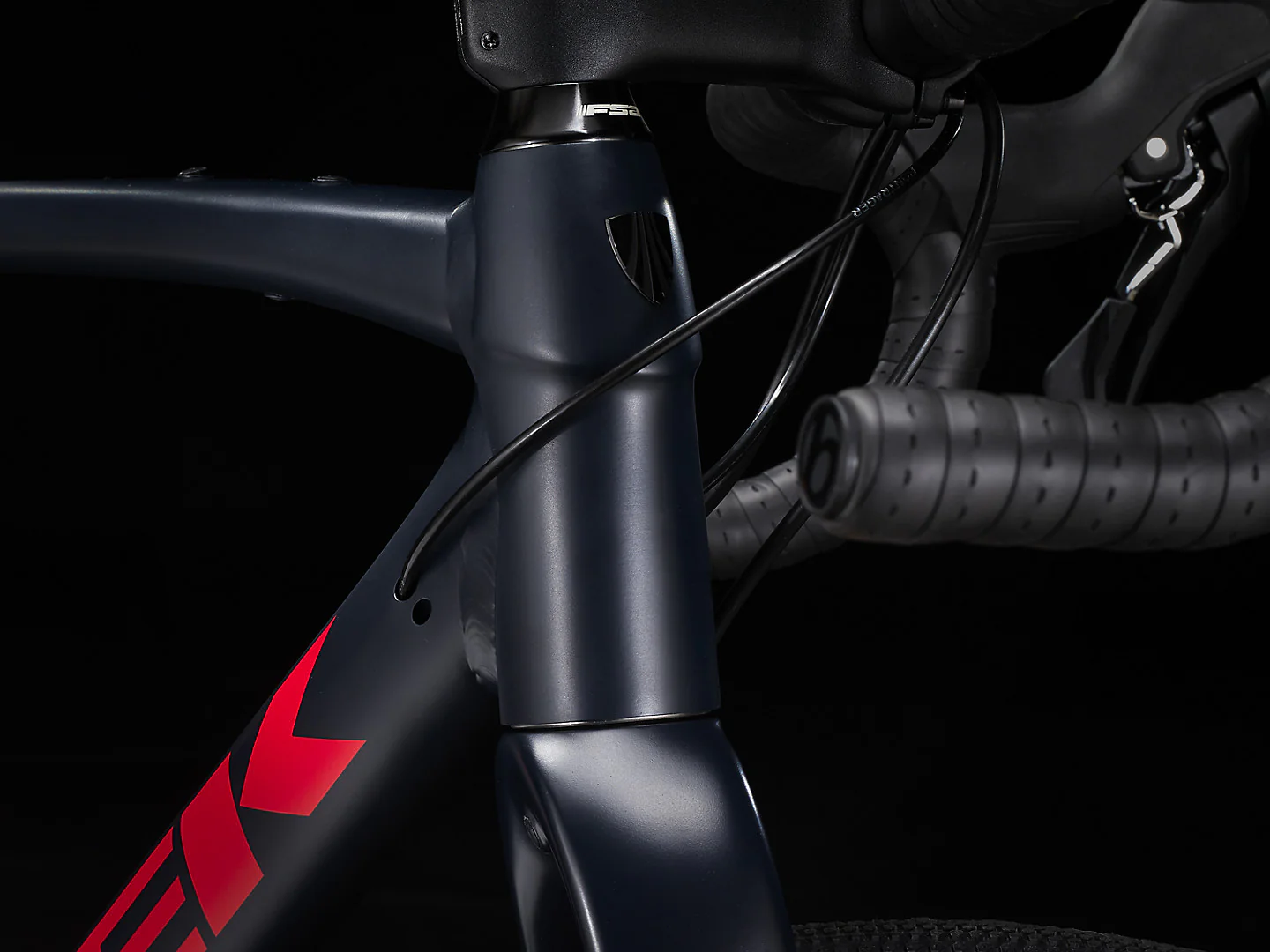

| Frame | 300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle |
|---|---|
| Fork | Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Frame fit | Gravel |
COMPONENTS
| *Saddle | Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

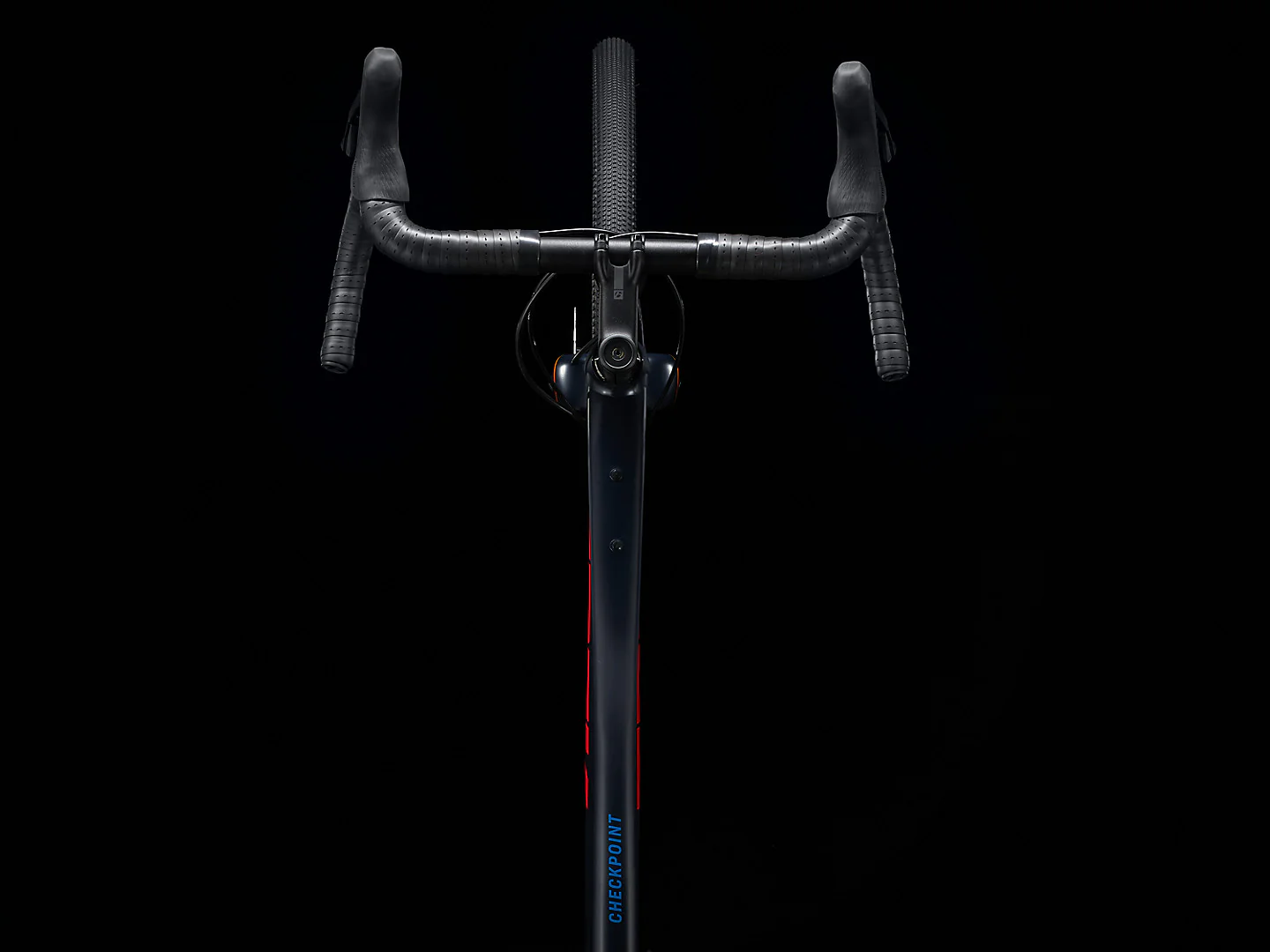

| *Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width |
| Size: 52 Bontrager Elite Gravel, 40 cm width |
|
| Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake rotor | Shimano SM-RT70, CenterLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
WHEELS
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Rim | Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
|
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager Aeolus XXX rim strip |
| Max tyre size | 700x45c / 650x2.1" Bontrager tyres |

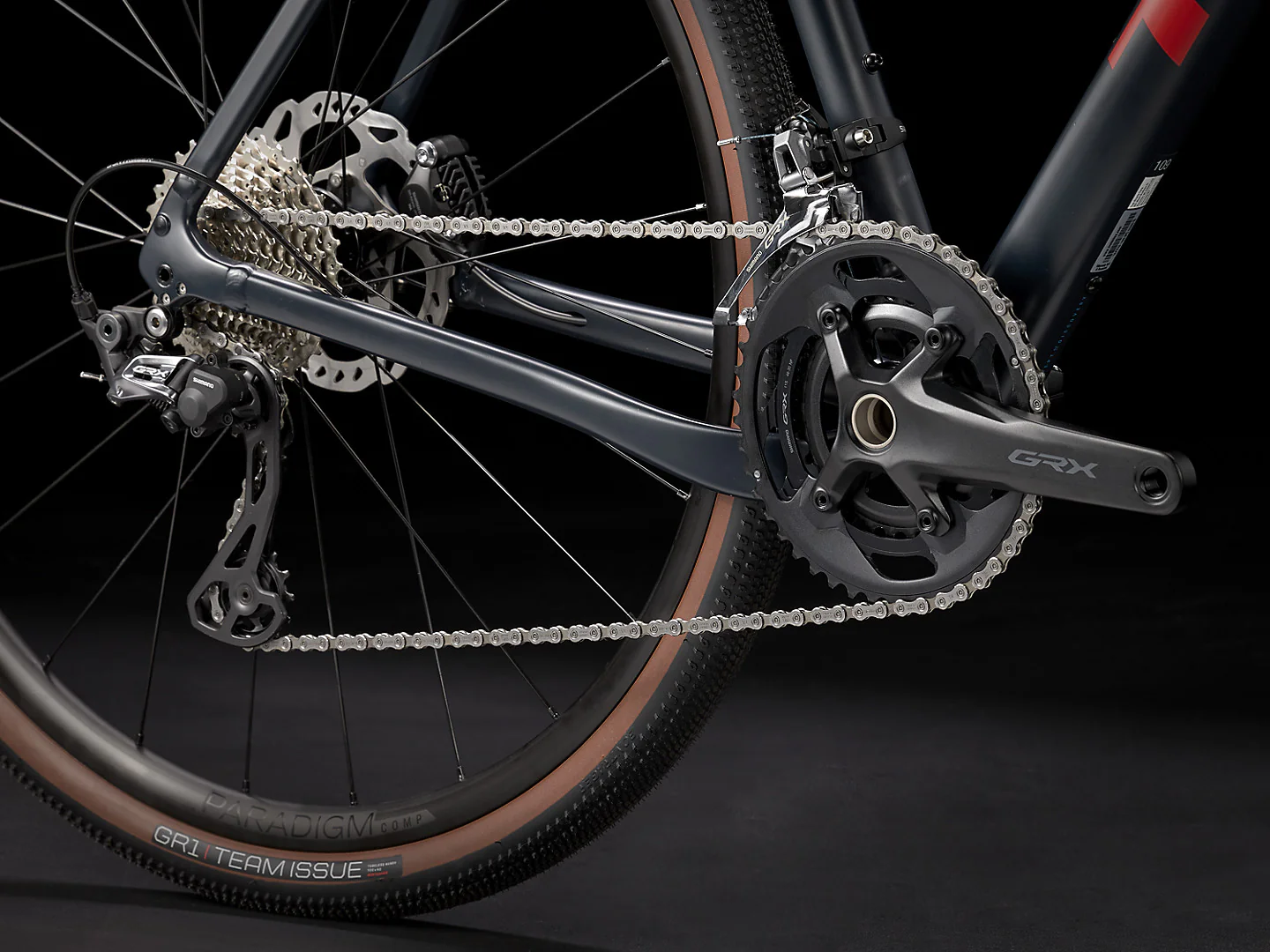

DRIVETRAIN
| Shifter | Shimano GRX RX600, 11-speed |
|---|---|
| Front derailleur | Shimano GRX RX810, braze-on |
| Rear derailleur | Shimano GRX RX810, long cage, 34T max cog |
| *Crank | Size: 49 Shimano GRX RX600, 46/30, 165 mm length |
| Size: 52 Shimano GRX RX600, 46/30, 170 mm length |
|
| Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length |
|
| Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano HG601 |
| Max. chainring size | 1x: 44T SRAM or 50T Shimano, 2x: 50/34 |
WEIGHT
| Weight | 56 - 9.75 kg / 21.5 lb |
|---|---|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
|
49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
|
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
|
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
|
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
|
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
|
61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
