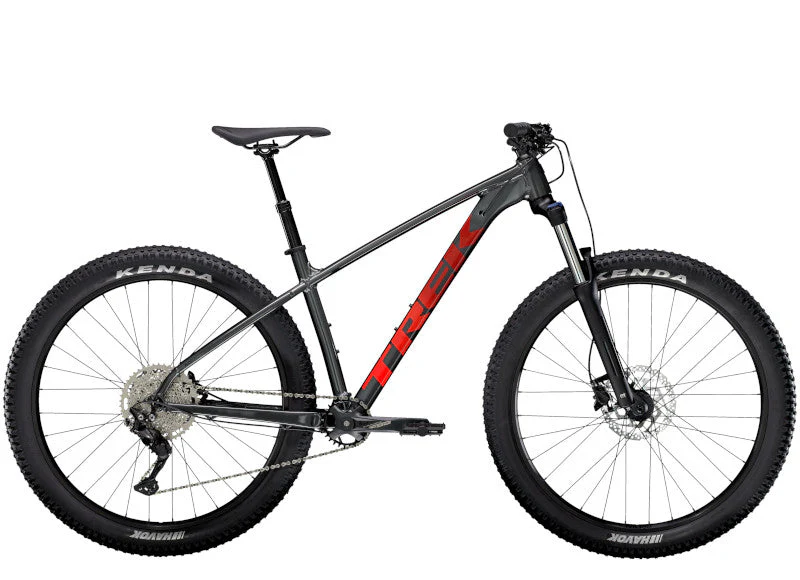

Roscoe 6 is the ideal gateway to mountain biking for new riders looking to have a fun time on the trail. It has plus-sized tyres that inspire confidence by elevating traction, a suspension fork that soaks up the big bumps and roots, an easy-to-use 1x drivetrain and playful frame geometry that makes it easier to control your bike on technical trails and winding singletrack.
*spec applies to all sizes unless otherwise noted **Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
FRAMESET

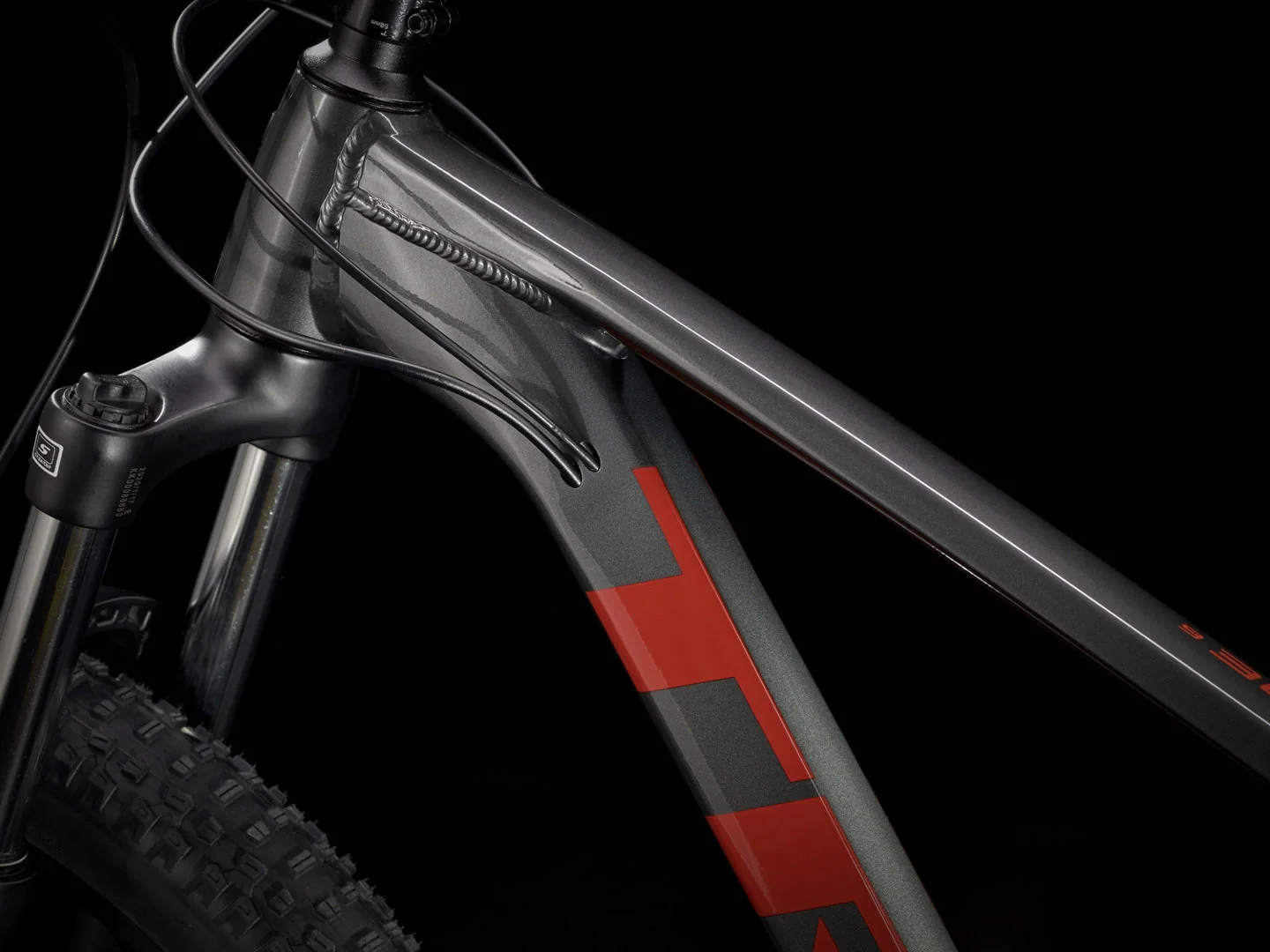

| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR |
|---|---|
| *Fork | Size: XS
SR Suntour XCM 32, coil spring, preload, lockout, 47 mm offset, Boost110, 15 mm thru axle, 100 mm travel |
| Size: S, M, M/L, L, XL, XXL
SR Suntour XCM 32, coil spring, preload, lockout, 47 mm offset, Boost110, 15 mm thru axle, 120 mm travel |
|
| Max compatible fork travel | 120mm (XS: 100mm) |
COMPONENTS

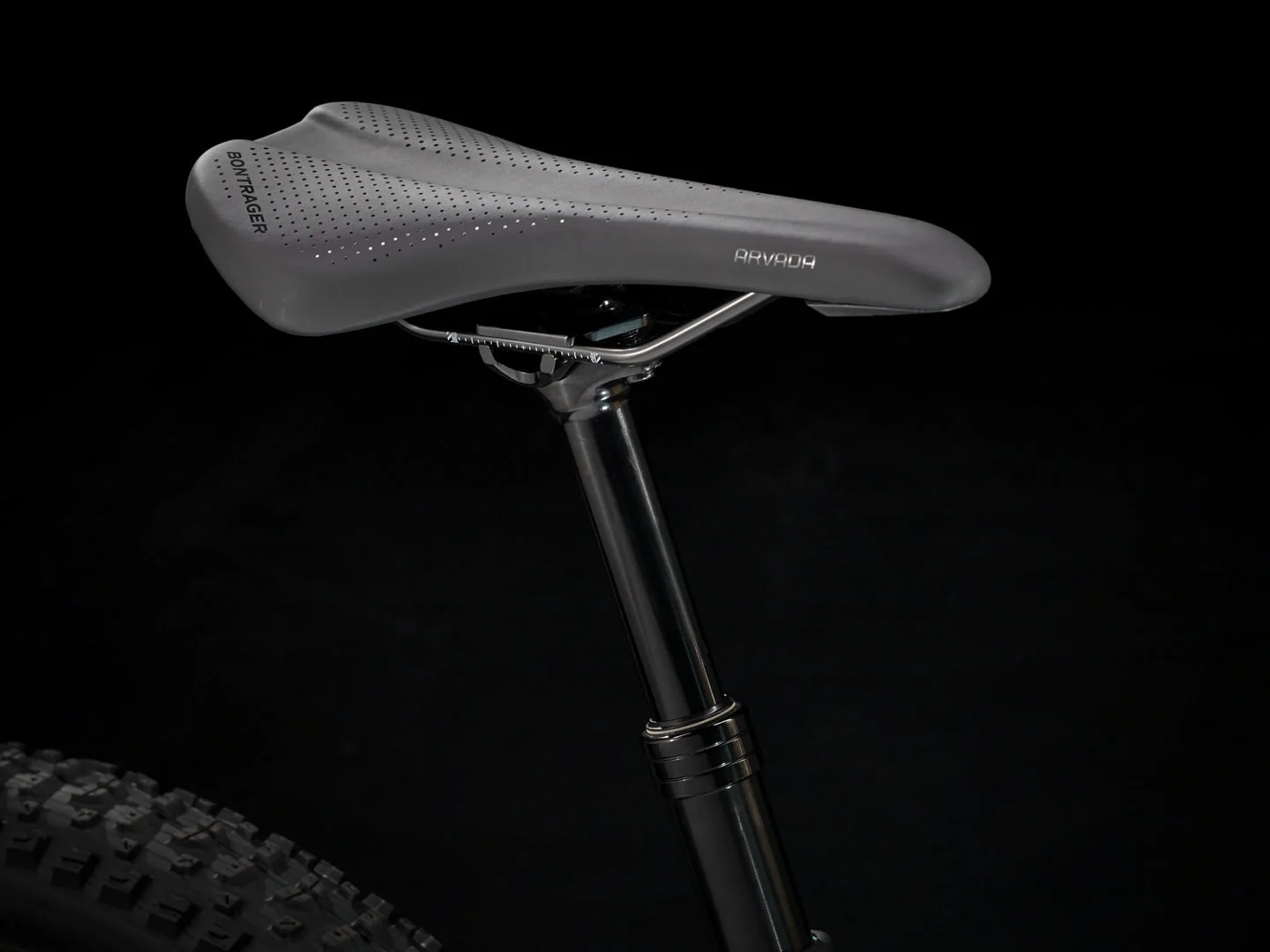

| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS, S, M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M/L, L, XL, XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|

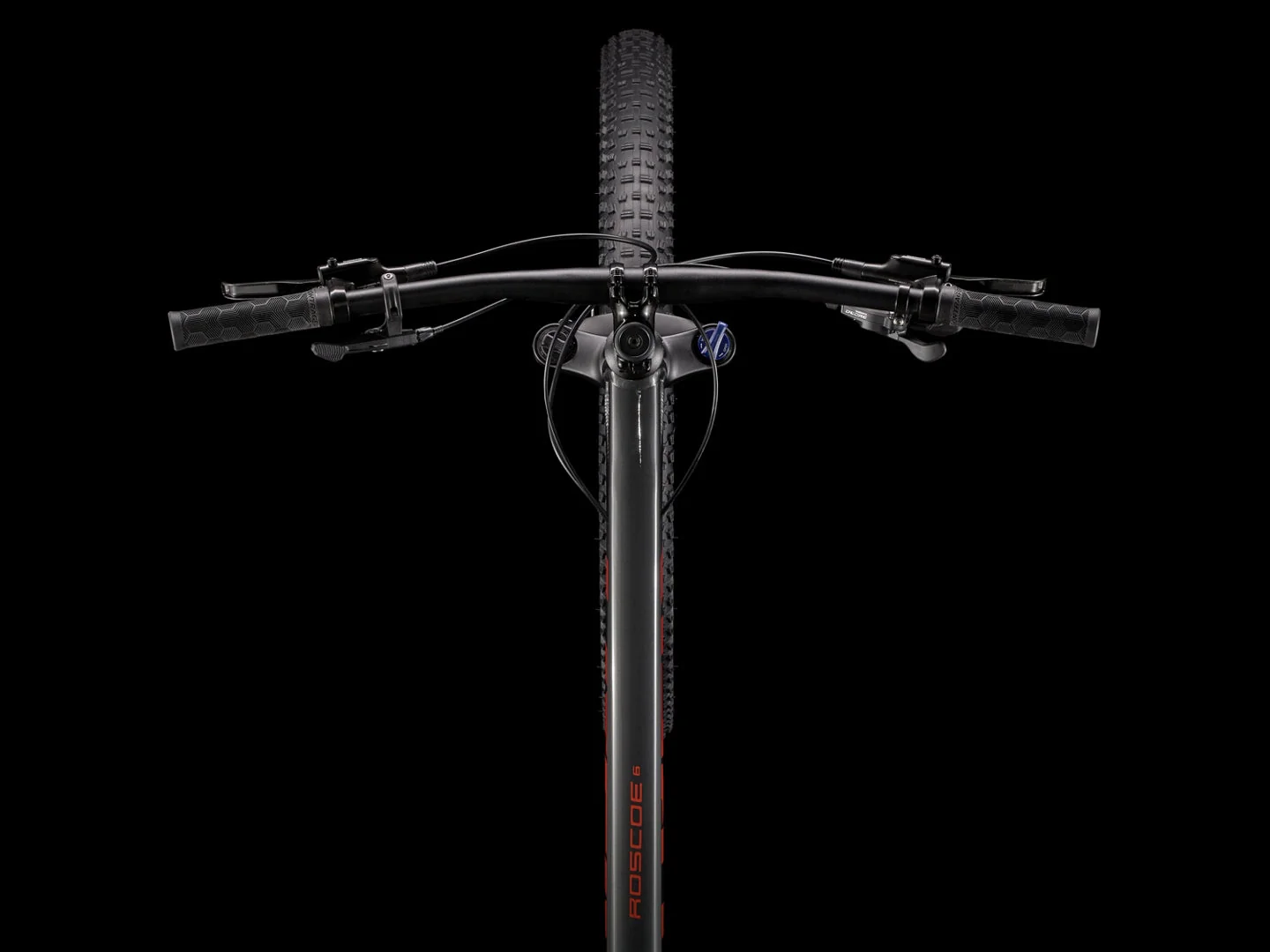

| *Handlebar | Size: XS
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
| Size: S, M, M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS, S, M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
| Size: M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Head set | Semi-integrated, cartridge, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS, S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm |
| Size: M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,180 mm |
WEIGHT
| Weight | M – 33.97 lb / 15.41 kg |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank | Size: XS, S
FSA Alpha Drive, 28T steel ring, Boost, 170 mm length |
| Size: M, M/L, L, XL, XXL
FSA Alpha Drive, 28T steel ring, Boost, 175 mm length |
|
| Bottom bracket | Shimano 7420ST, 73 mm, threaded cartridge, 124.5 mm spindle |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 32T |
WHEELS
| Hub front | Formula DC-511, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Spokes | 14 g stainless steel |
| Tyre | Kenda Havok, wire bead, 30 tpi, 27.5x2.80" |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer |
|
Size |
Rider Height |
Inseam |
|
XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
|
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
|
M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
|
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
|
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
|
2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
