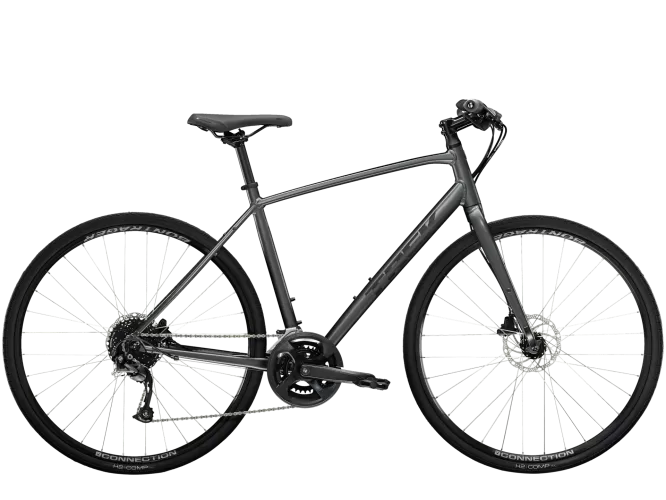

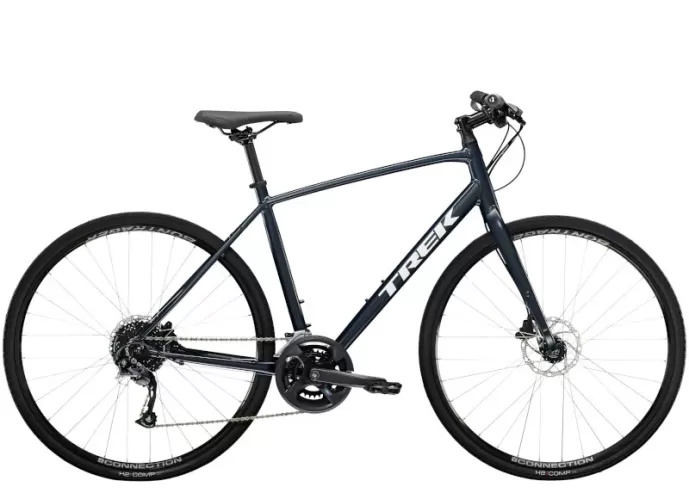

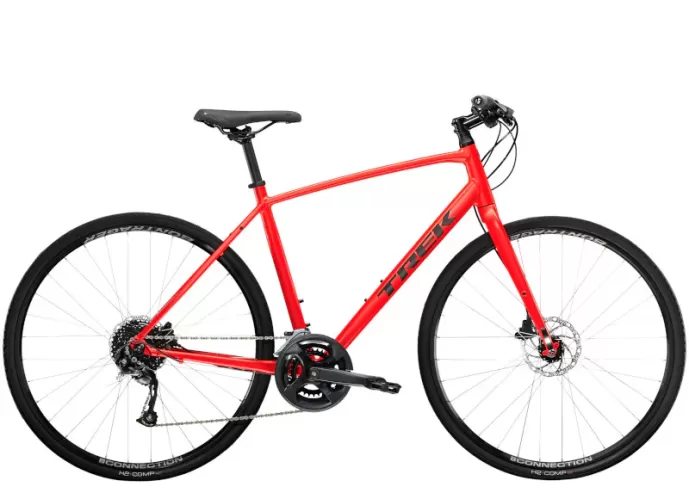

FX 2 Disc is a stylish and versatile hybrid bike with disc brakes that let you stop on a penny and ask for change, even when the weather isn't cooperating. Train, commute or ride for fun with the lightweight aluminium frame, 18 speeds, and semi-skinny tyres that are fast on the road and stable on loose terrain.
*spec applies to all sizes unless otherwise noted
FRAMESET

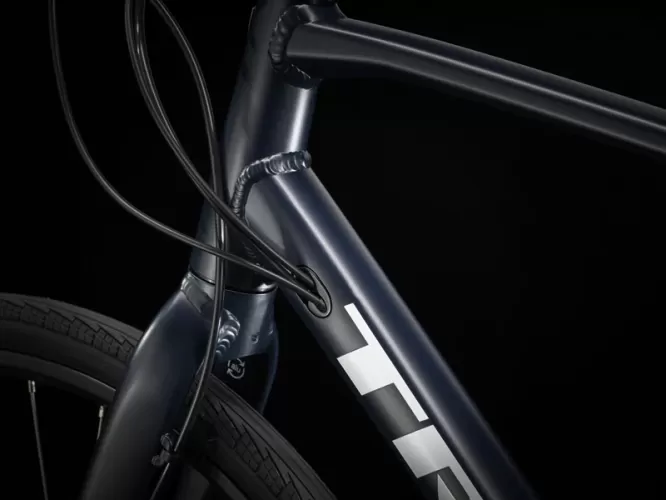

| Frame | Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR |
|---|---|
| Fork | FX Alloy, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR |
COMPONENTS
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

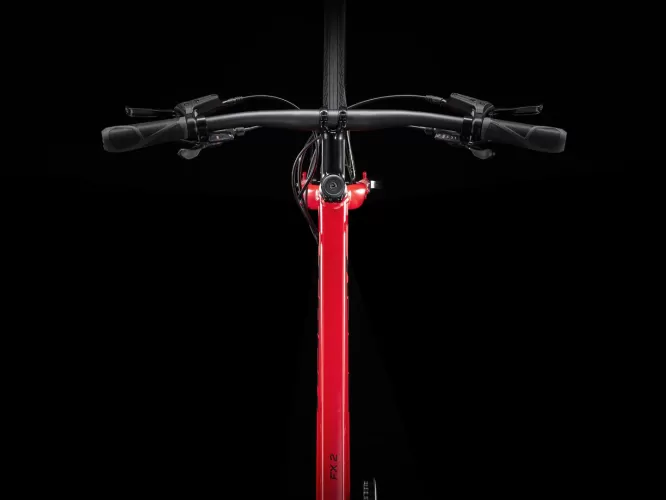

| *Handlebar | Size: XS, S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
| Size: L, XL, XXL Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Grips | Bontrager Satellite |
| *Stem | Size: XS, S, M Bontrager alloy, 31.8 mm clamp, Blendr- compatible, 7-degree, 90 mm length |
| Size: L, XL, XXL Bontrager alloy, 31.8 mm clamp, Blendr- compatible, 7-degree, 100 mm length |
|
| Head set | 1-1/8" threadless, sealed cartridge bearings |
| *Brake | Size: XS, S, M, L, XL, XXL Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor |
| Size: XS, S, M, L, XL, XXL Tektro HD-R280 hydraulic disc, flat mount, 160mm rotor |
WEIGHT
| Weight | M - 25.86 lb / 11.73 kg |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano Altus M2010, 9-speed |
|---|---|
| Front derailleur | Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M2000, long cage |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68mm |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Bontrager City Pedals |
WHEELS
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Rim | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35c |
| Max tyre size | 38c without fenders, 35c with fenders |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
|
M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
|
L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
|
XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
