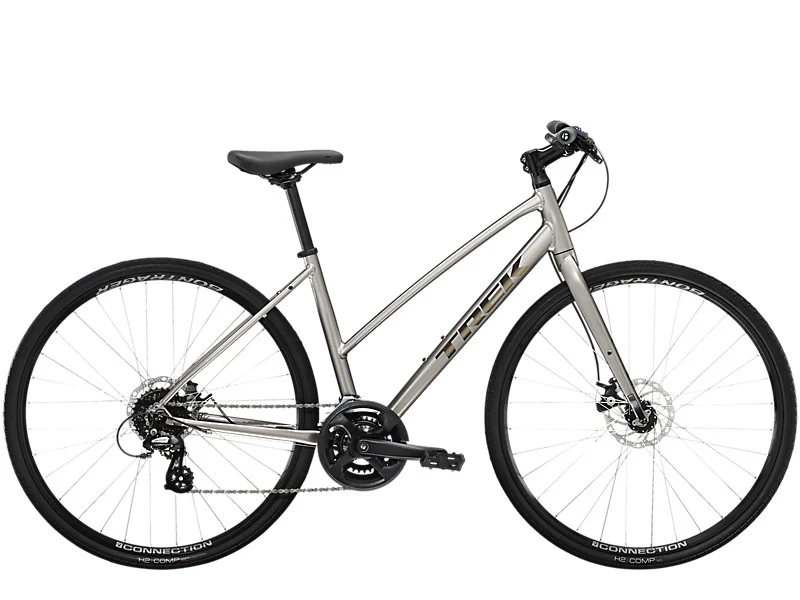

FX 1 Disc Stagger is a hybrid bike with a classic step-through frame design that's easier to mount and dismount and modern disc brakes that give you extra stopping power in all weather conditions. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise or commute to work on a versatile bike backed by a lifetime warranty.
*spec applies to all sizes unless otherwise noted
Frameset

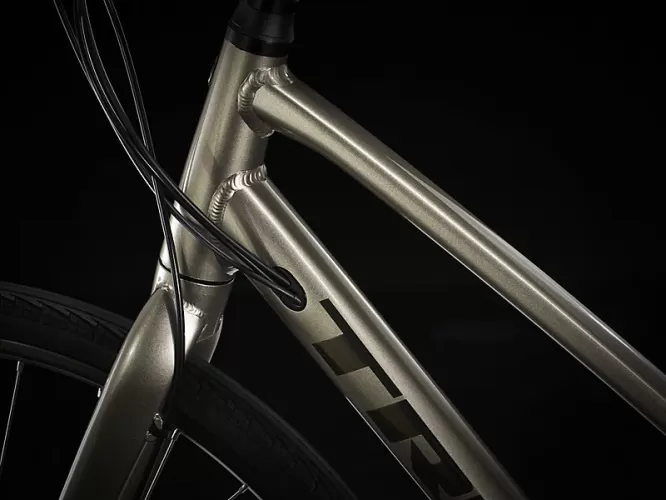

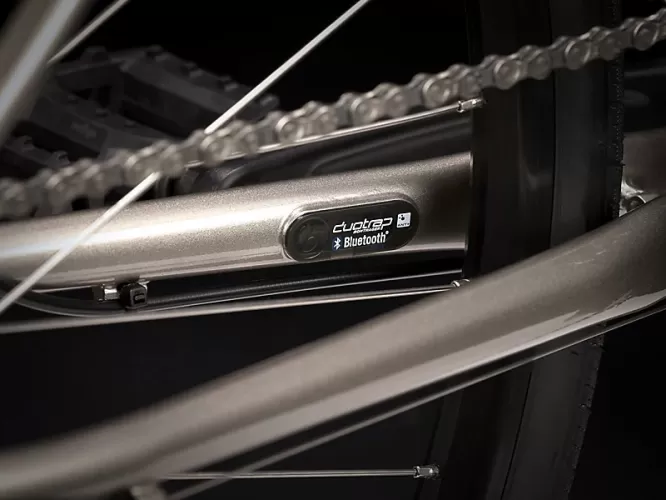

| Frame | Alpha Gold Aluminium, stagger top tube, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR |
|---|---|
| Fork | FX Steel, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR |
Drivetrain
| Shifter | Shimano EF500, 8-speed |
|---|---|
| Front derailleur | Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68mm |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager Sports Women's |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar | Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Grips | Bontrager Satellite |
| *Stem | Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
| Size: L Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|
| Head set | 1-1/8" threadless, sealed cartridge bearings |
| Brake | Tektro MD-U310 mechanical disc, flat-mount, 160 mm rotor |
| Rotor size | Max brake rotor size: 160 mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Rim | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35c |
| Max tyre size | 38c without mudguards, 35c with mudguards |
Weight
| Weight | M - 27.73 lb / 12.58 kg |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
|
M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
|
L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
|
XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
