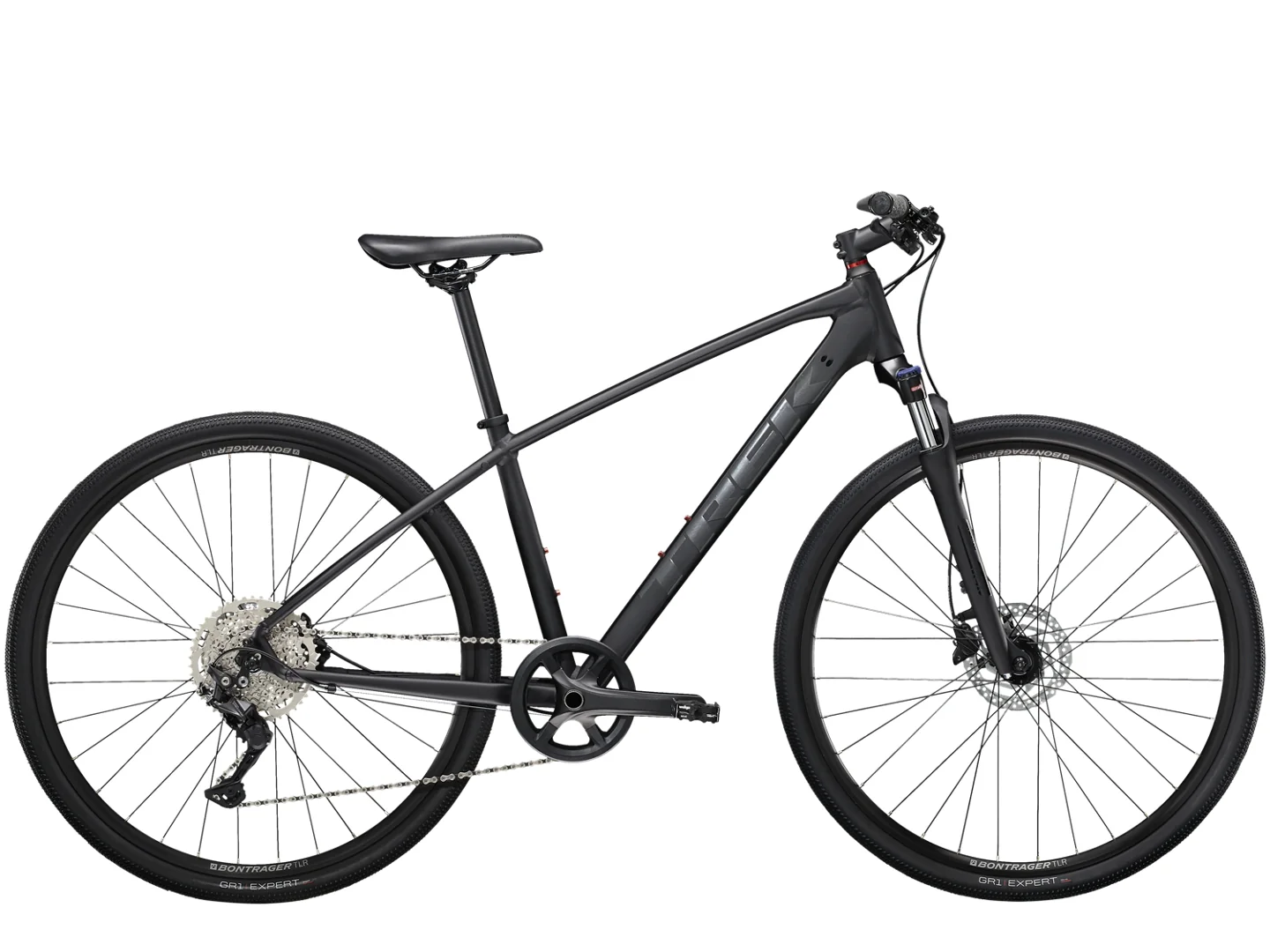

Dual Sport 3

Manufacturer Trek
Available Colours

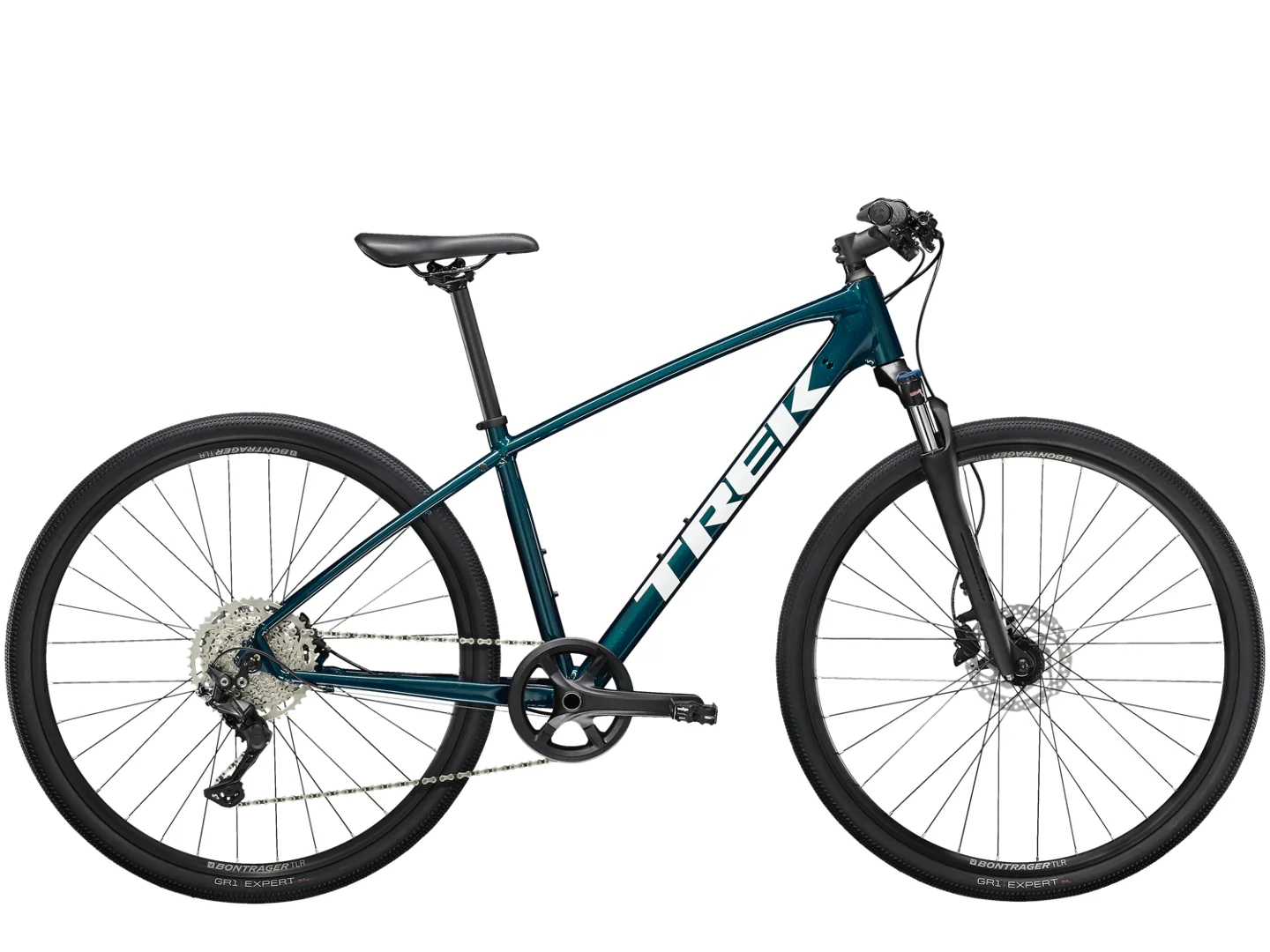

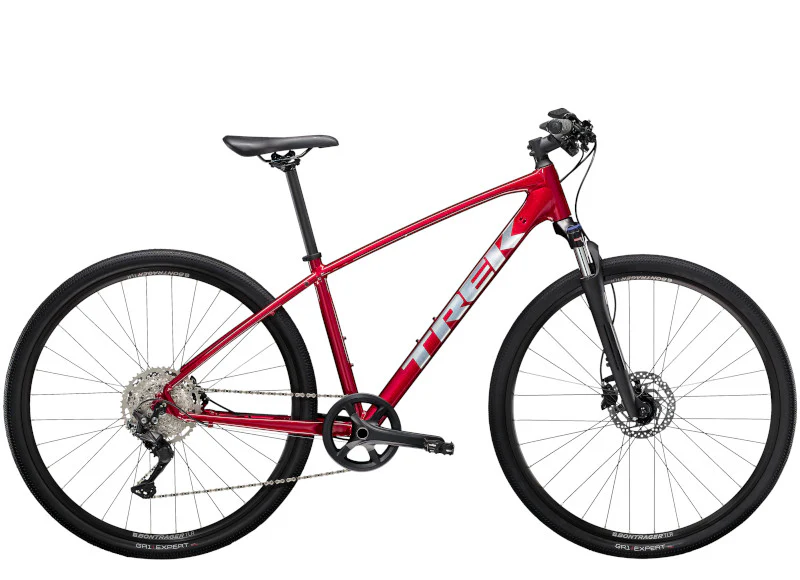

Trek Black / Dark Aquatic / Rage Red
Material
Aluminum
Terrain
Road
Riding Style
Fitness
Women's / Kids
Women's (WSD)
Specials
Not Applicable

Dual Sport 3 is a high-performance hybrid bike with upgraded components that stand up to long rides on a variety of surfaces, from city streets to gravel trails and more! Plus, front suspension, a wide-range 1x drivetrain, tubeless ready rims, and puncture-resistant tires give you the confidence to take on bigger adventures.

Features

  • The 1x drivetrain gives you all the gears you need and none you don’t

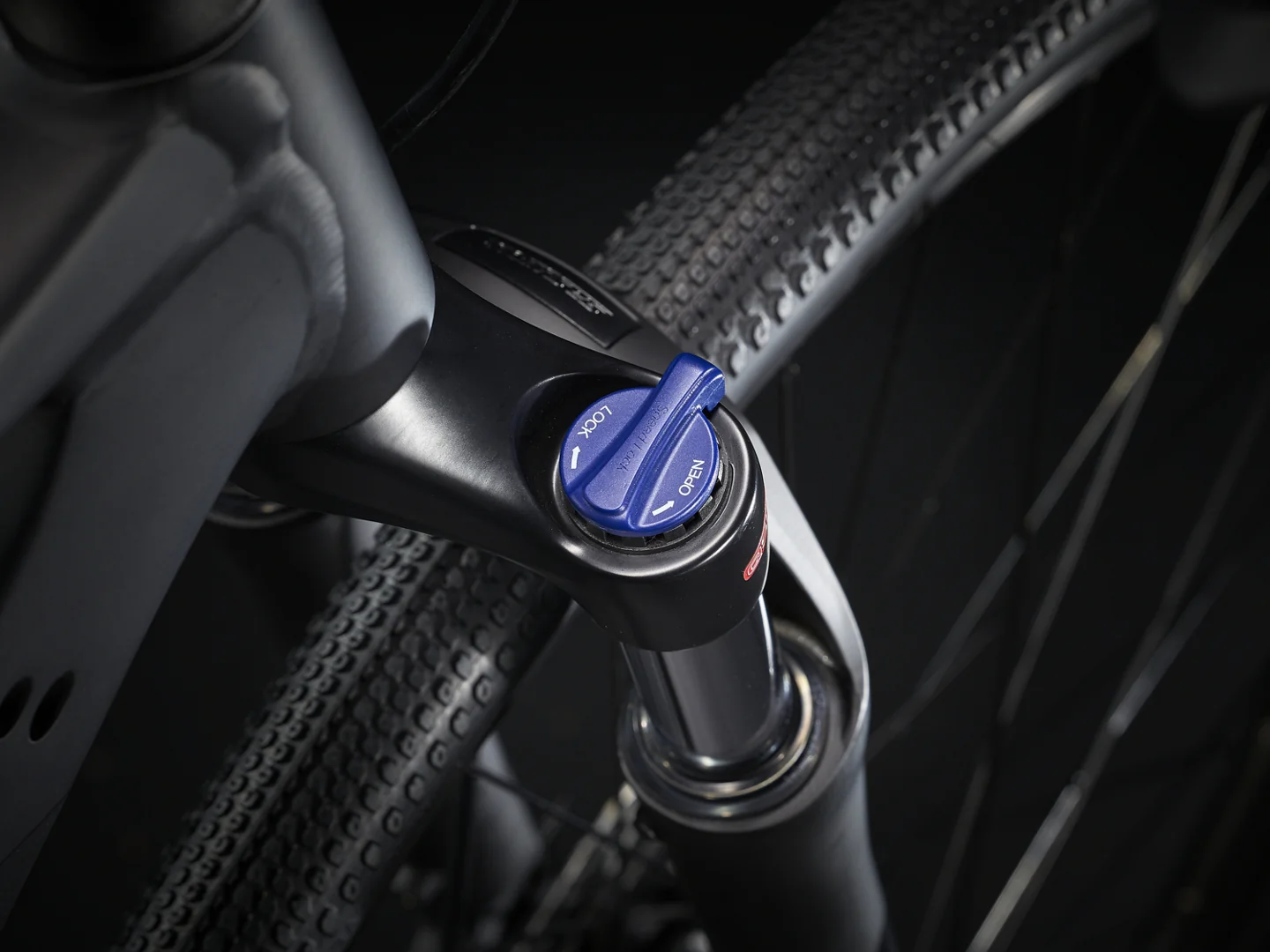

  • The fork's hydraulic lockout feature ensures you're always riding efficiently: close it for smooth pavement, open it up on rougher trails
  • A wide range of gearing means you never have to pedal too hard or too soft, even on the biggest hills

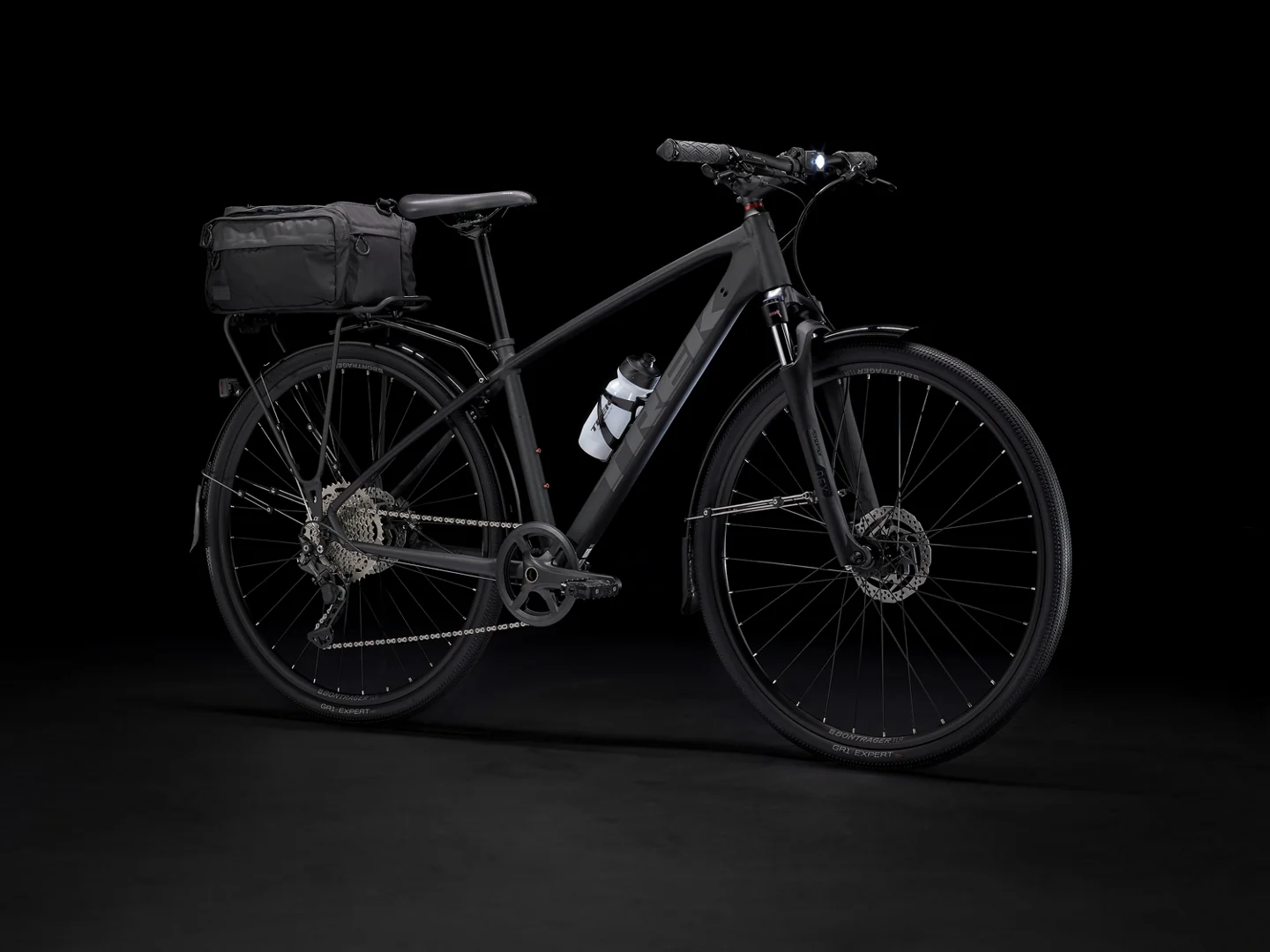

  • It's easy to accessorize with racks, a kickstand, fenders, lights, and fitness devices to track your ride data when you add DuoTrap S

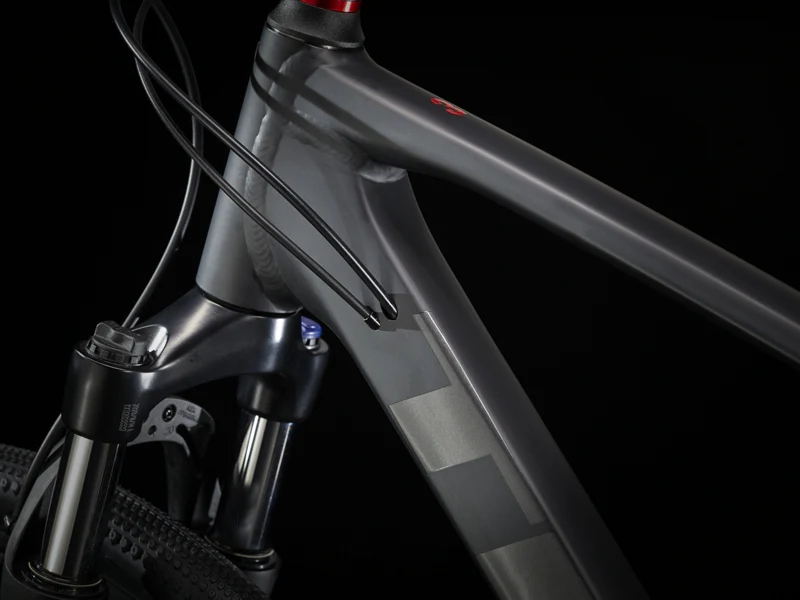

  • Internal cable routing extends the life of your cables and adds to the bike's sleek look

Specifications

*spec applies to all sizes unless otherwise noted

FRAMESET

Frame Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5mm QR, 63mm travel

COMPONENTS

Saddle Bontrager H1
Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar Size: S, M
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width
Size: L, XL
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Grips Bontrager XR Endurance Elite, lock-on, ergonomic
*Stem Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: M, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset 1-1/8'' threadless, sealed cartridge bearings
Brake rotor Shimano RT26, 6-bolt,160mm

WEIGHT

Weight M - 13.01 kg / 28.69 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).



DRIVETRAIN



Shifter Shimano Deore M4100, 10 speed
Rear derailleur Shimano Deore M5120, long cage
*Crank Size: S, M
Prowheel alloy, 40T narrow-wide ring, 170mm length
Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175mm length
Cassette Shimano Deore M4100, 11-46, 10 speed
Chain KMC X10,10 speed
Pedal Wellgo M141, resin body, alloy cage

WHEELS

Hub front Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim Bontrager Tubeless Ready Disc, 32-hole, presta valve
Tire Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Max tire size Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer

**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.

**Weights are based off pre-production products at time of publication. Weights may vary in final production.

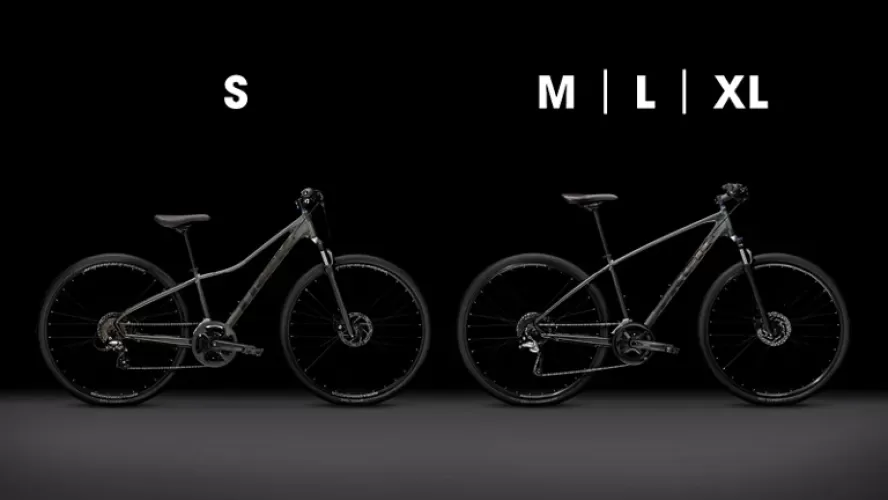

Sizing Guide

Size

Rider Height

Inseam

XS

147 - 155 cm

4'10" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

XL

186 - 197 cm

6'1" - 6'6"

87 - 93 cm

34" - 37"
