The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140 mm front and 130 mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

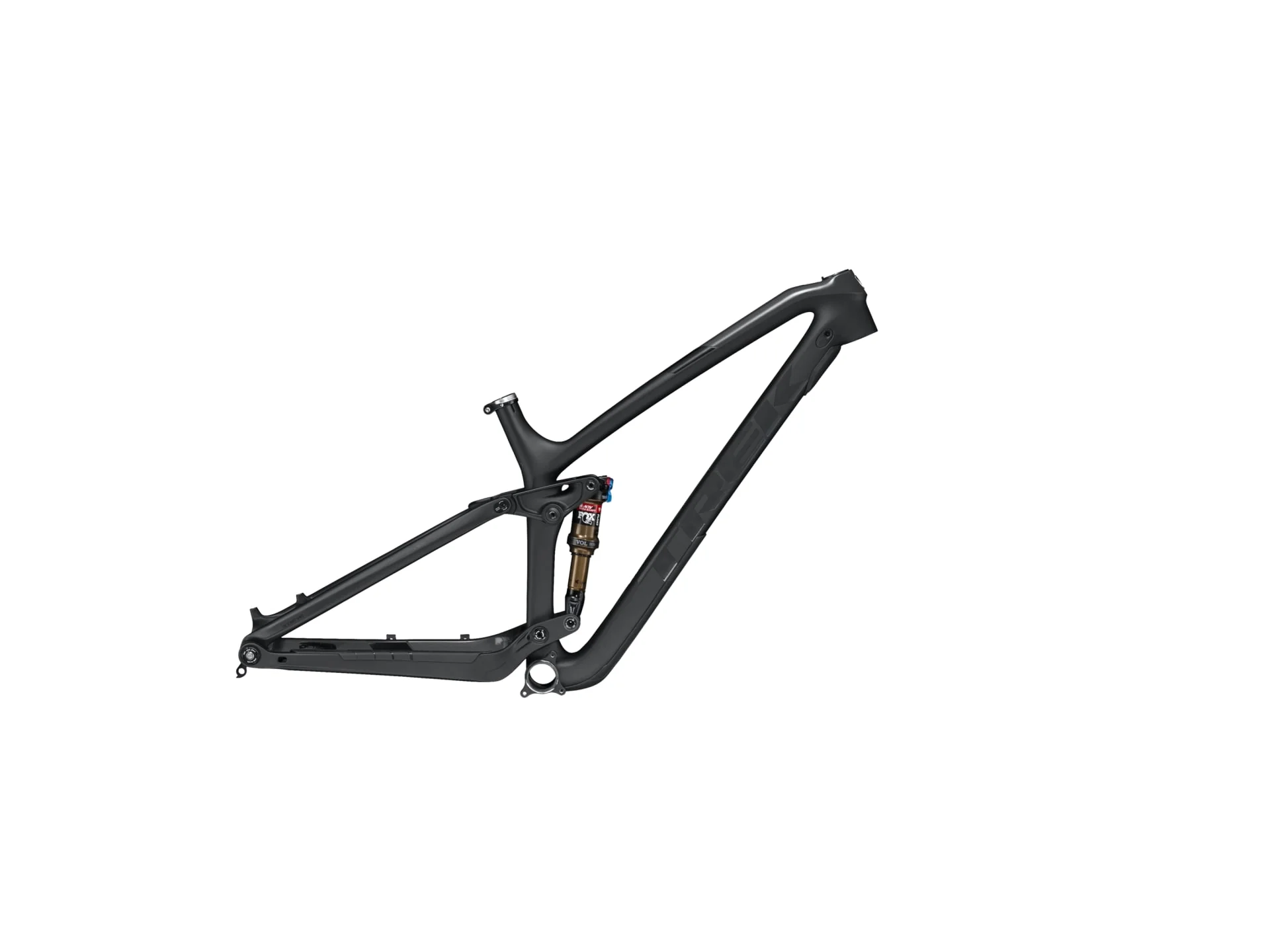

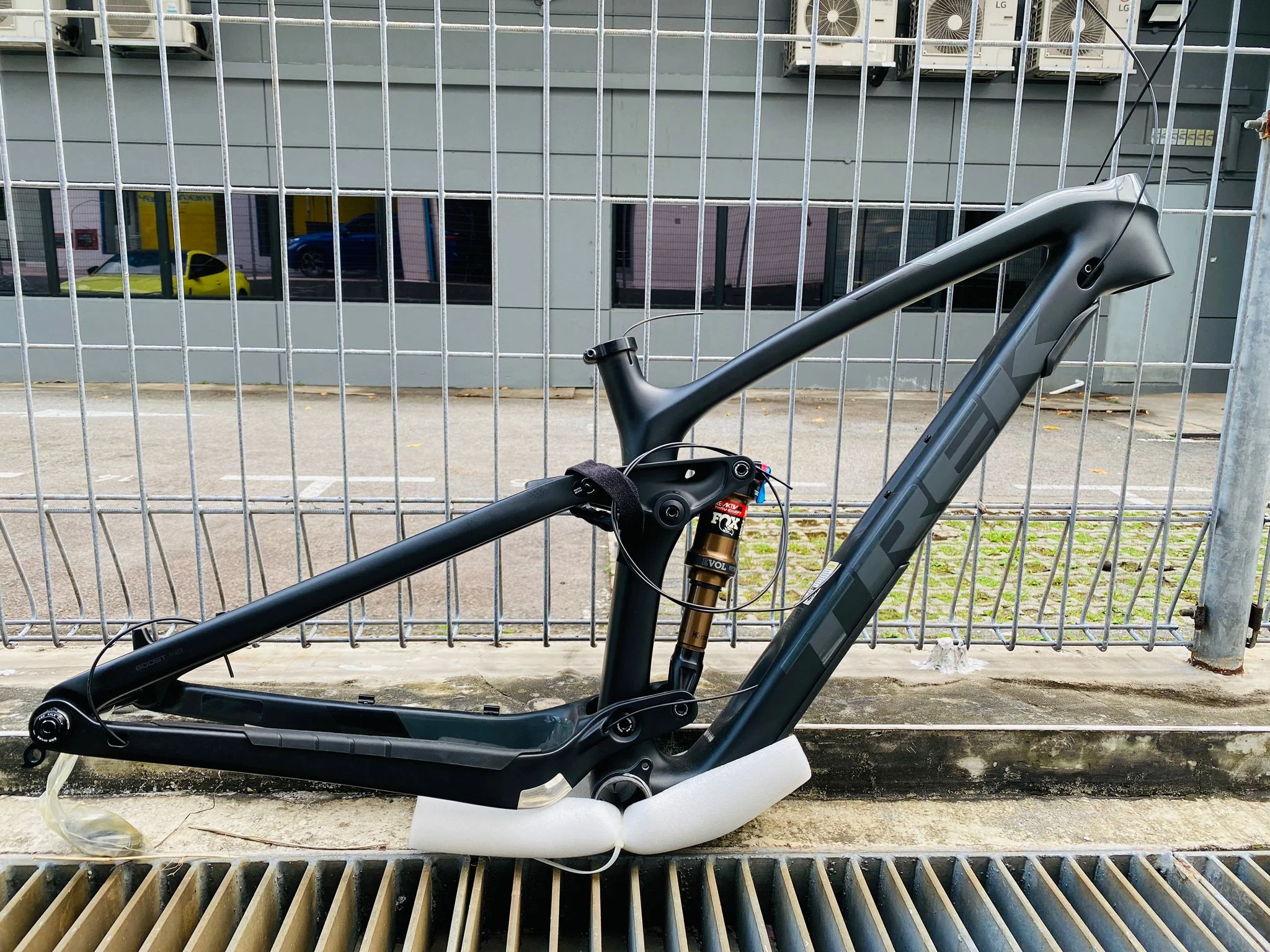

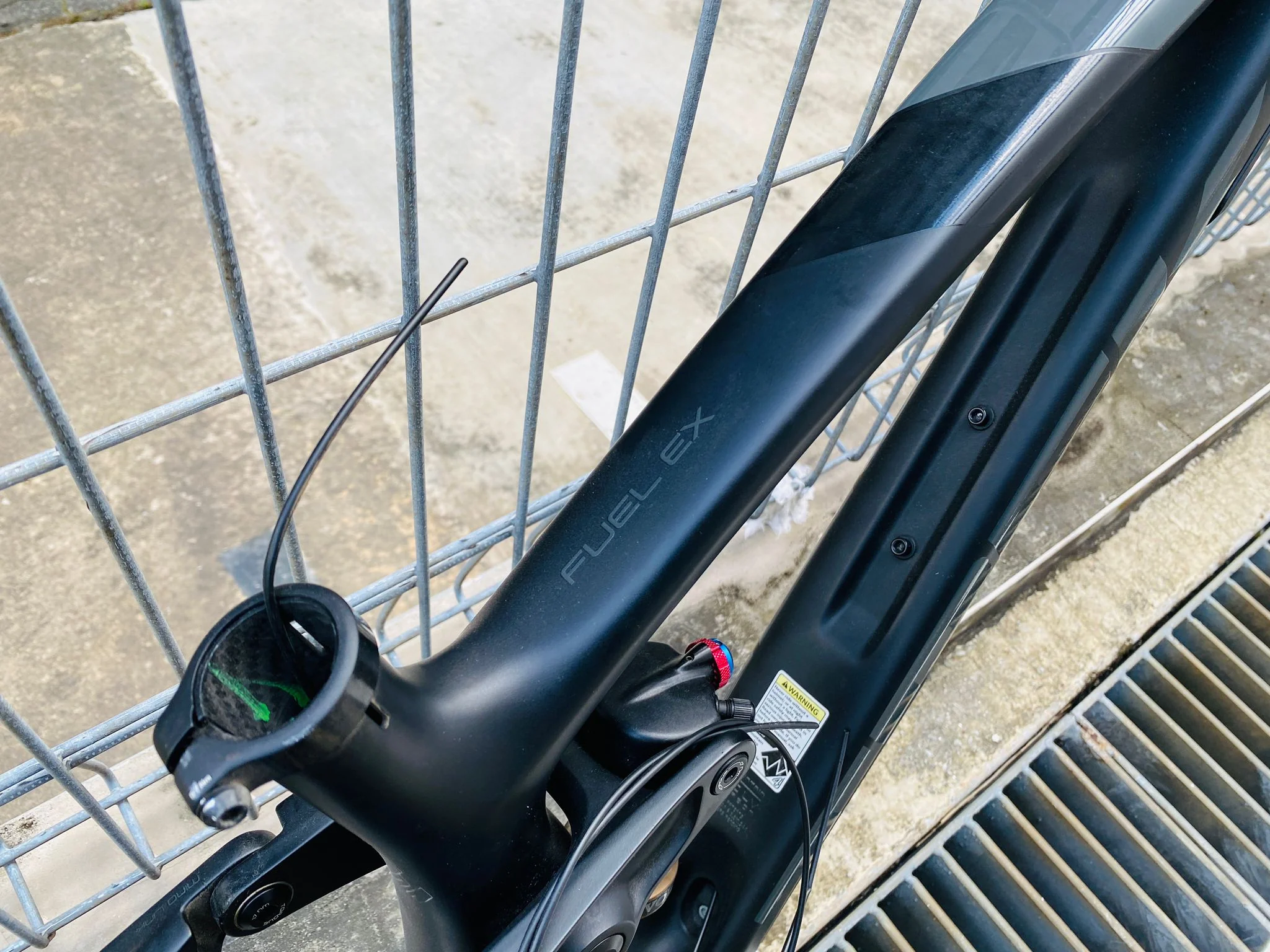

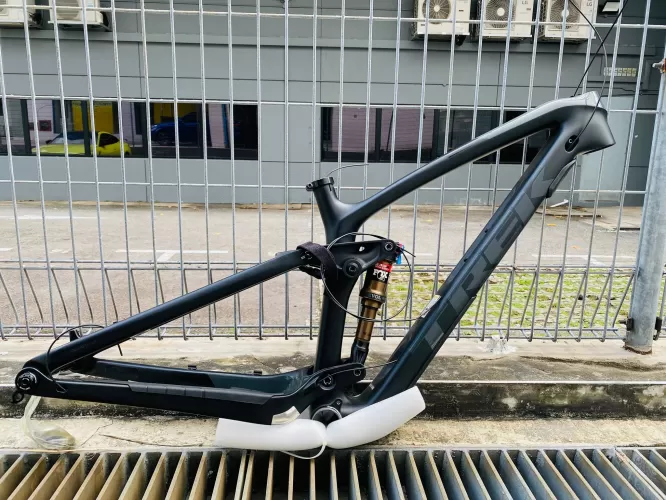

Frame - OCLV Mountain Carbon main frame and stays, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 130 mm travelRear suspensionFox Factory Float EVOL, RE:aktiv 3-position damper with Thru Shaft, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5 mm
Head set - Knock Block Integrated, sealed cartridge bearing, 1-1/8˝ top, 1.5˝ bottom
Weight - M - 2.54 kg / 5.60 lbsWeight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
