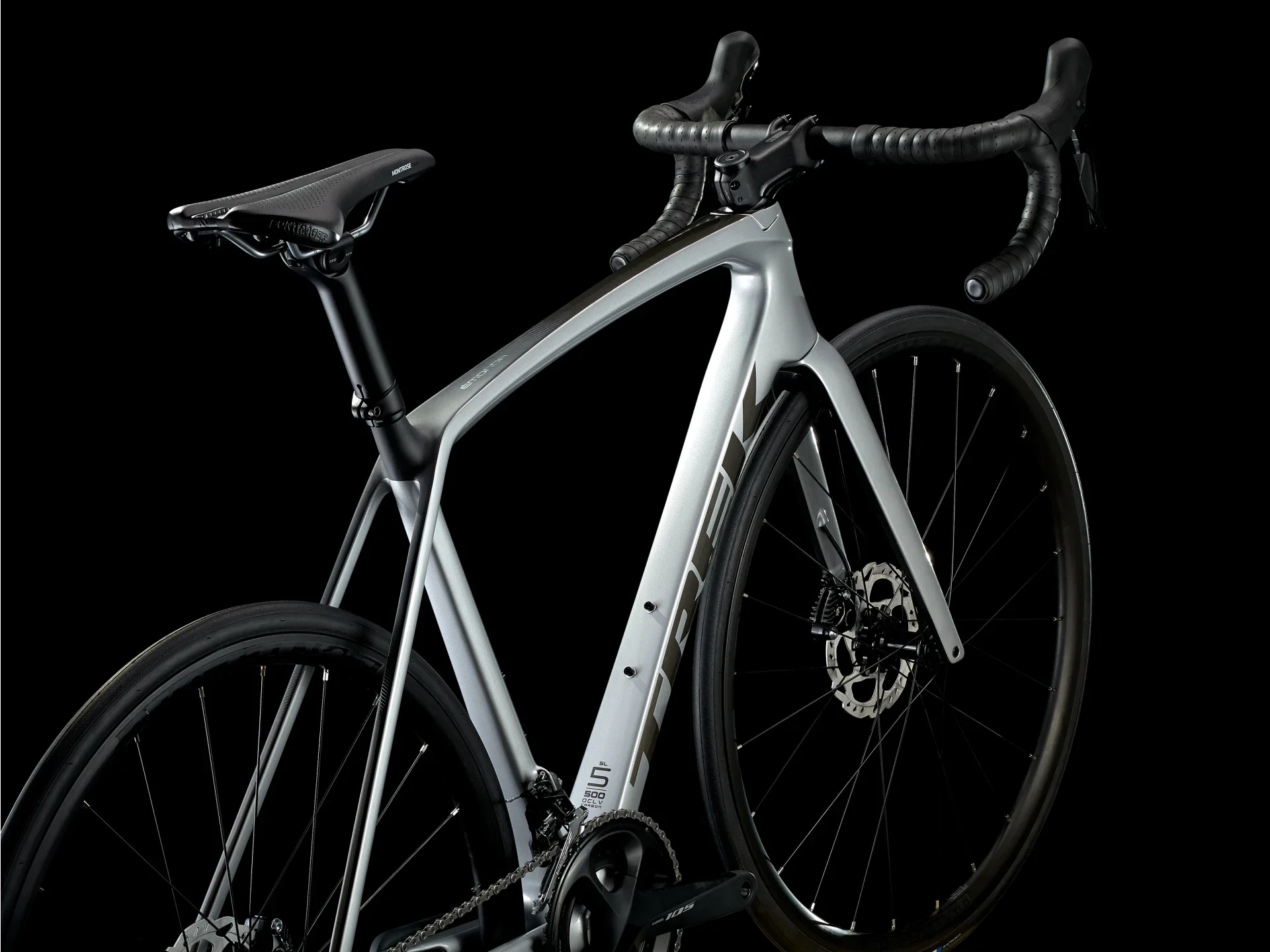

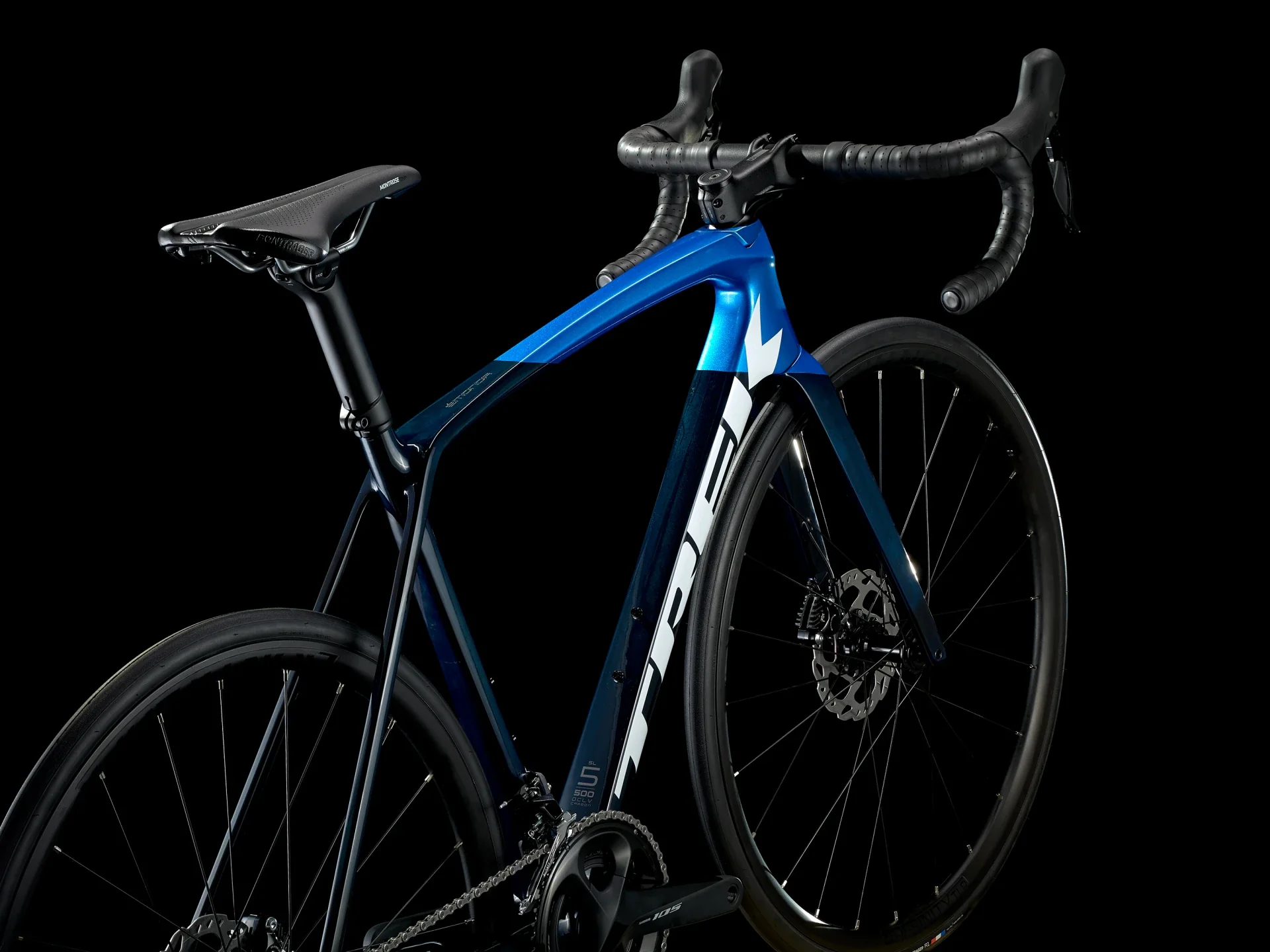

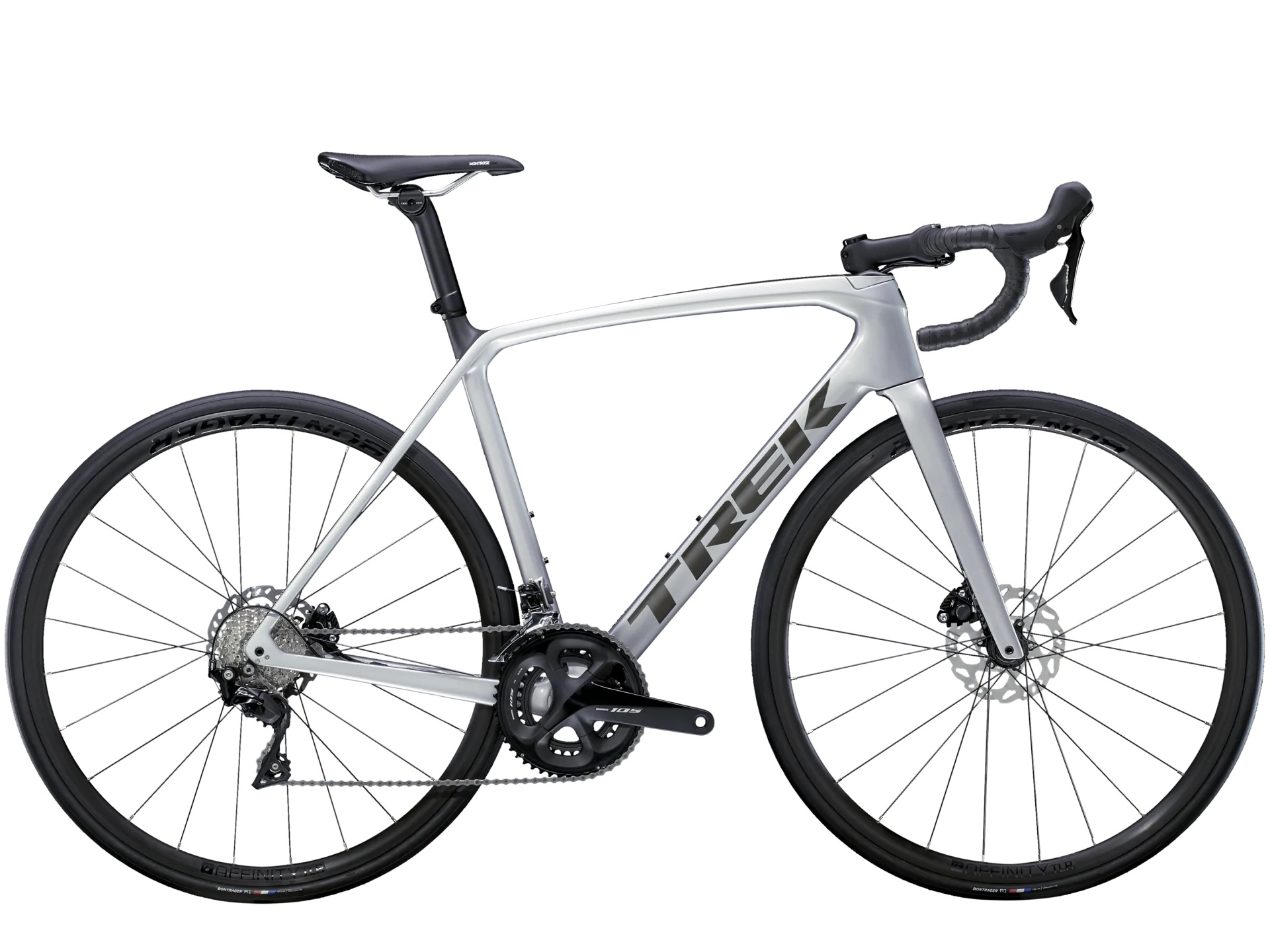

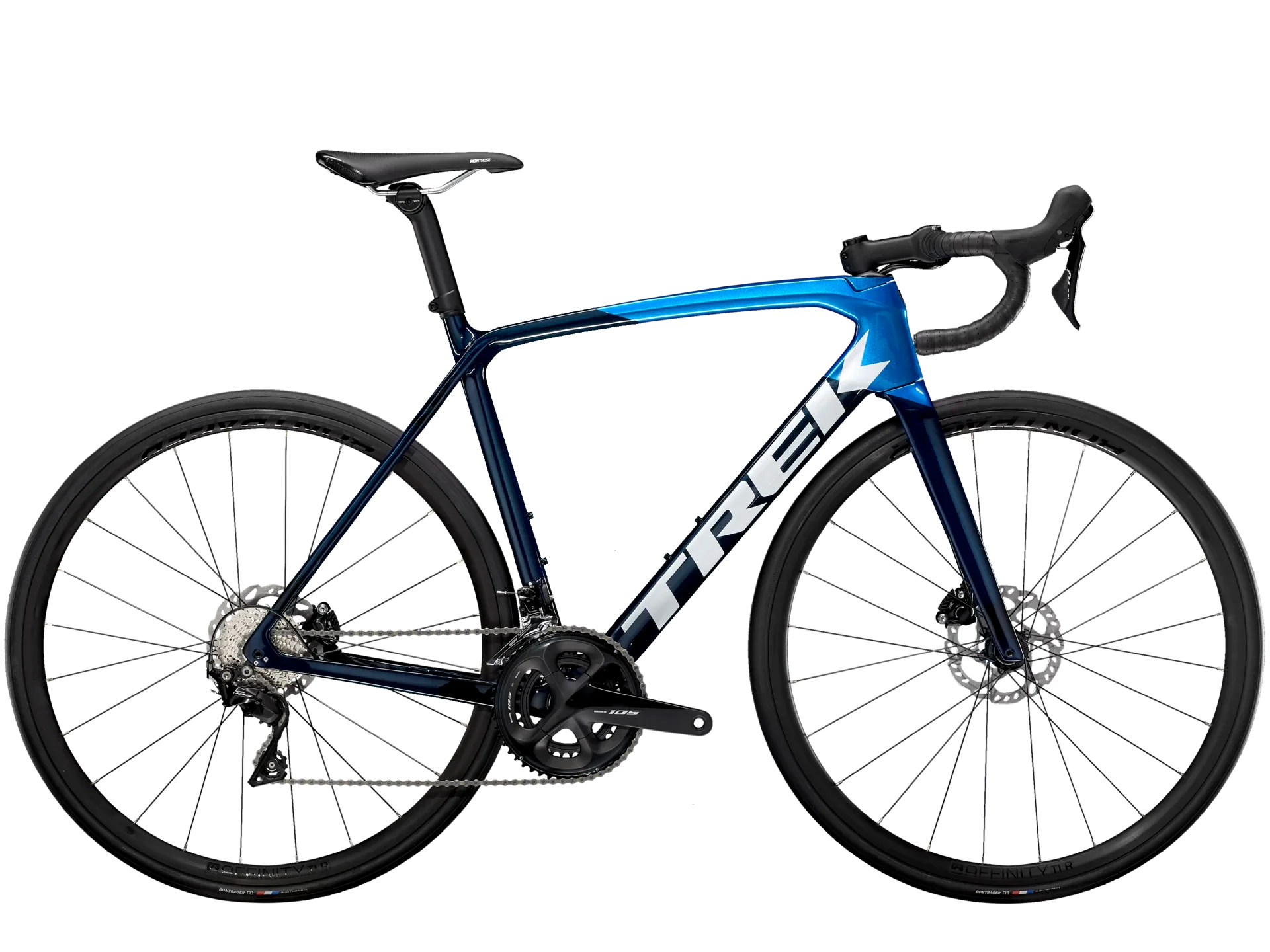

Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats and speedy descents.
*Please note – spec applies to all sizes unless listed separately
FRAMESET
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
| Frame fit | H1.5 Race |
| Weight | 56 - 8.87 kg / 19.55 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| *Shifter | Size: 47, 50, 52 Shimano 105 R7025, short-reach lever, 11-speed |
| Size: 54, 56, 58, 60, 62 Shimano 105 R7020, 11-speed |
|
| Front derailleur | Shimano 105 R7000, braze-on |
| Rear derailleur | Shimano 105 R7000, short cage, 30T max cog |
| *Crank | Size: 47 Shimano 105 R7000, 50/34 (compact), 165 mm length |
| Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length |
|
| Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5 mm length |
|
| Size: 60, 62 Shimano 105 R7000, 50/34 (compact), 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 R7000, 11-30, 11 speed |
| Chain | Shimano 105 HG601, 11-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm |
| Max tyre size | 28mm |
| *Saddle | Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155 mm width |
| Size: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145 mm width |
|
| *Seatpost | Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager alloy seat mast cap, 10 mm offset, tall length |
|
| *Handlebar | Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width |
| Size: 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width |
|
| Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
| Size: 60, 62 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Size: 58, 60, 62 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake | Shimano 105 hydraulic disc |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| Weight | 56 - 8.87 kg / 19.56 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
** Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| 47 | 152 - 158 cm5'0" - 5'2" | 71 - 75 cm28" - 30" |
| 50 | 158 - 163 cm5'2" - 5'4" | 74 - 77 cm29" - 30" |
| 52 | 163 - 168 cm5'4" - 5'6" | 76 - 79 cm30" - 31" |
| 54 | 168 - 174 cm5'6" - 5'9" | 78 - 82 cm31" - 32" |
| 56 | 174 - 180 cm5'9" - 5'11" | 81 - 85 cm32" - 33" |
| 58 | 180 - 185 cm5'11" - 6'1" | 84 - 87 cm33" - 34" |
| 60 | 185 - 190 cm6'1" - 6'3" | 86 - 90 cm34" - 35" |
| 62 | 190 - 195 cm6'3" - 6'5" | 89 - 92 cm35" - 36" |
