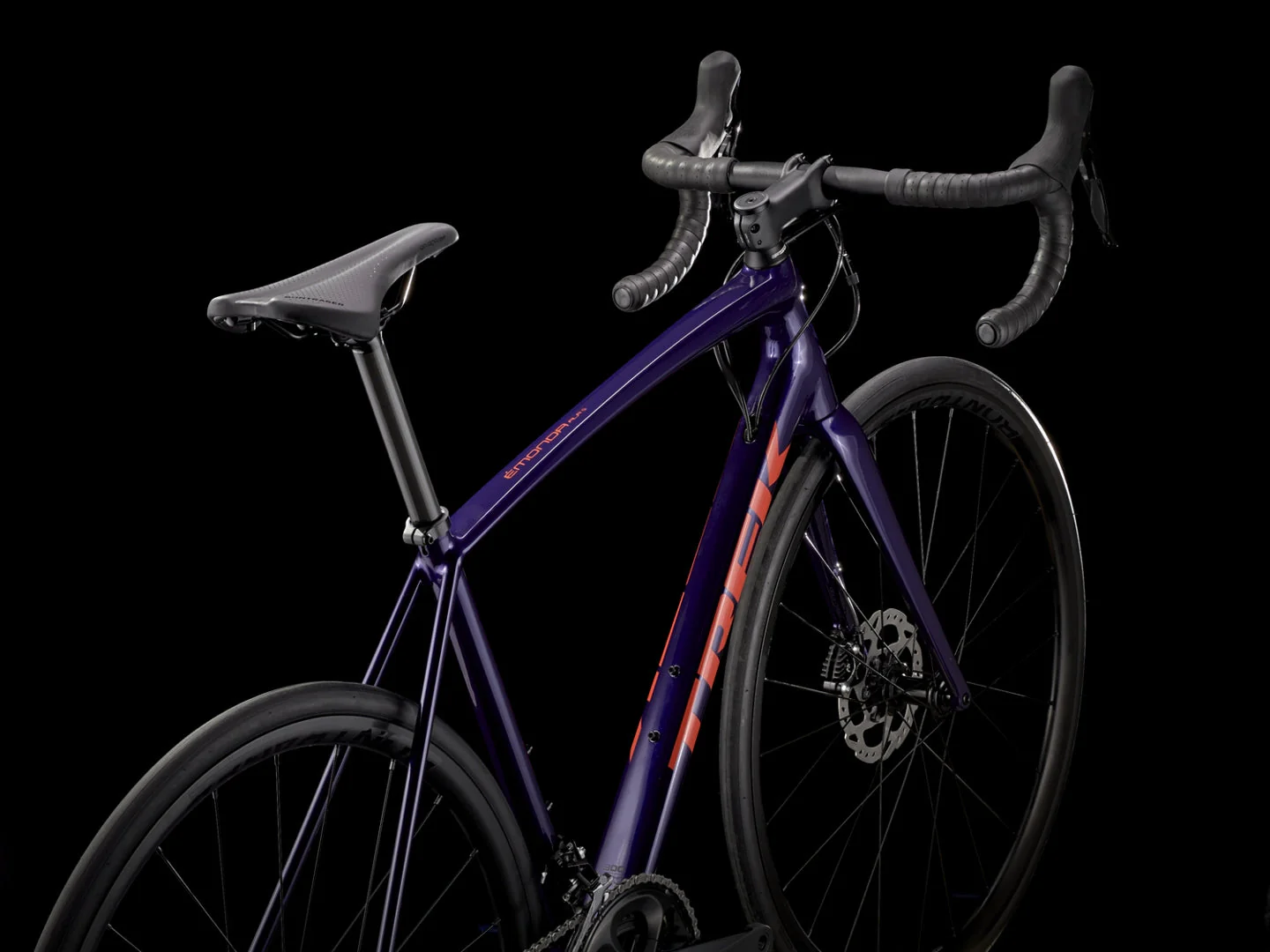

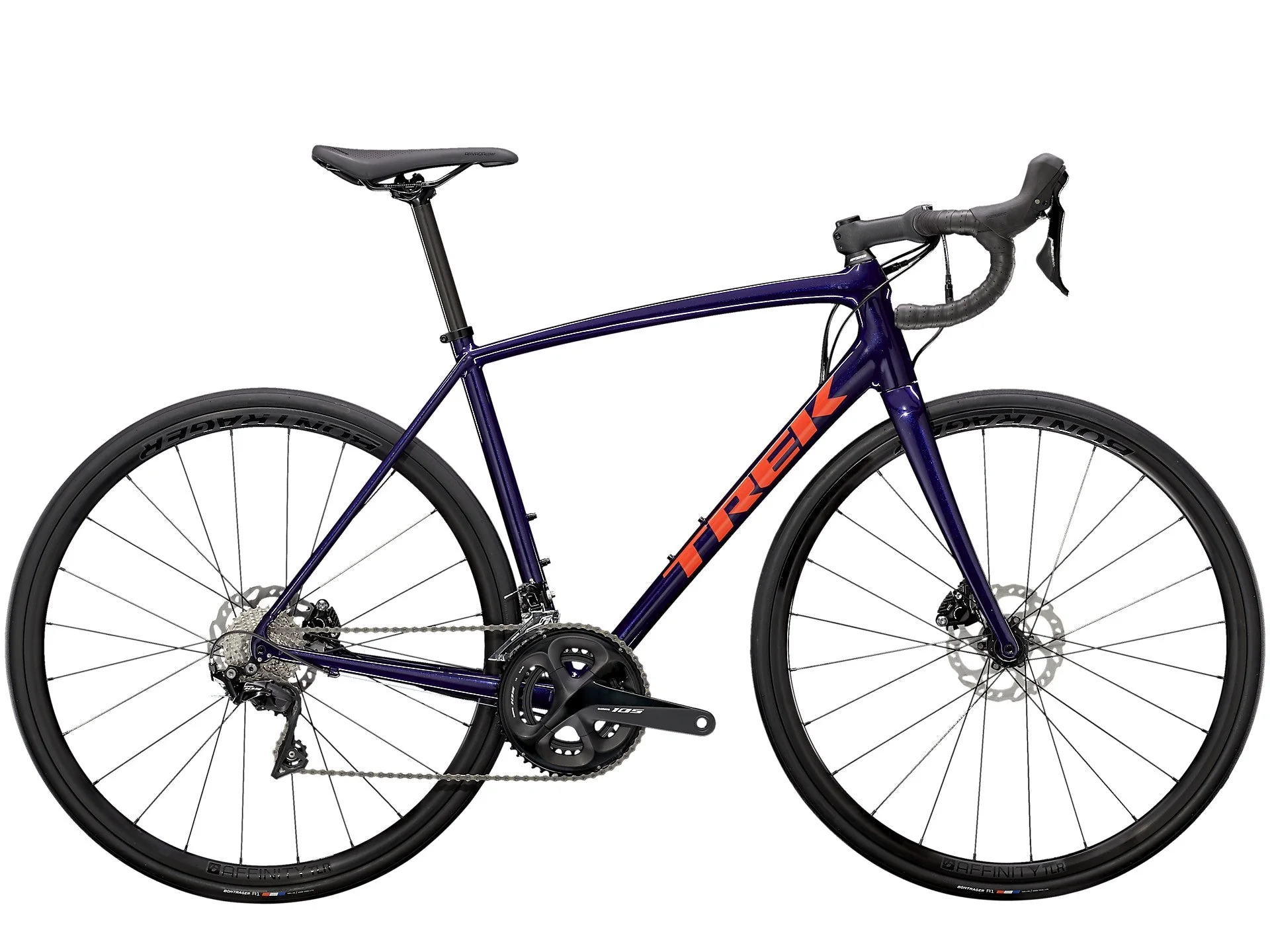

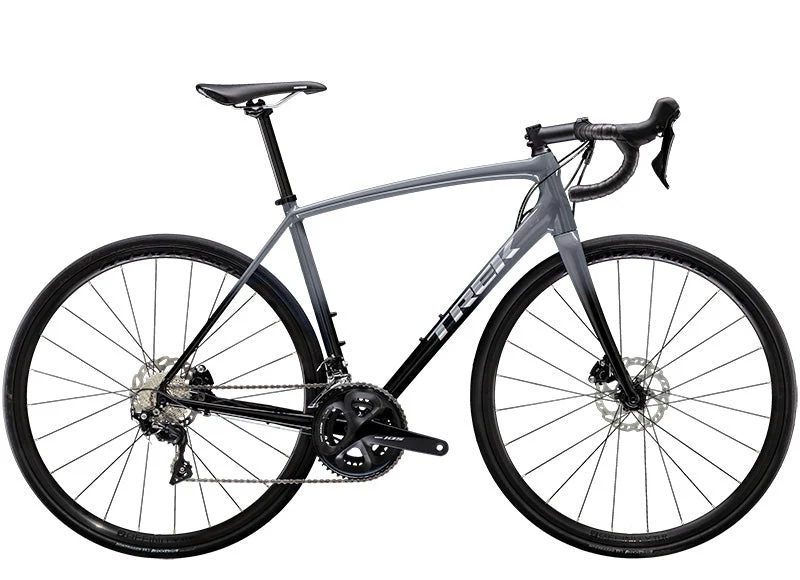

Émonda ALR 5 Disc is a light and responsive road bike with an advanced alloy frame that gives it the sleek looks and handling of a far more expensive carbon bike. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.
*spec applies to all sizes unless otherwise noted**Trek Bikes reserves the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
FRAMESET

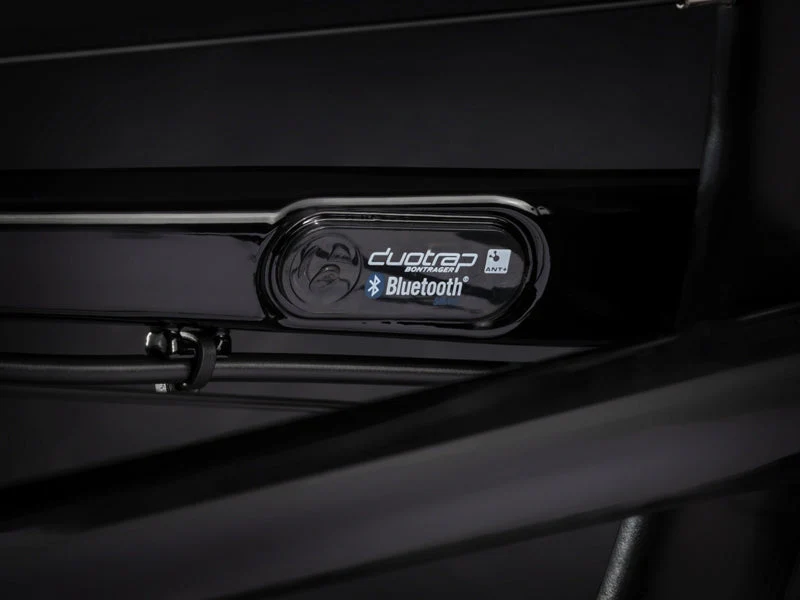

| Frame | Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|

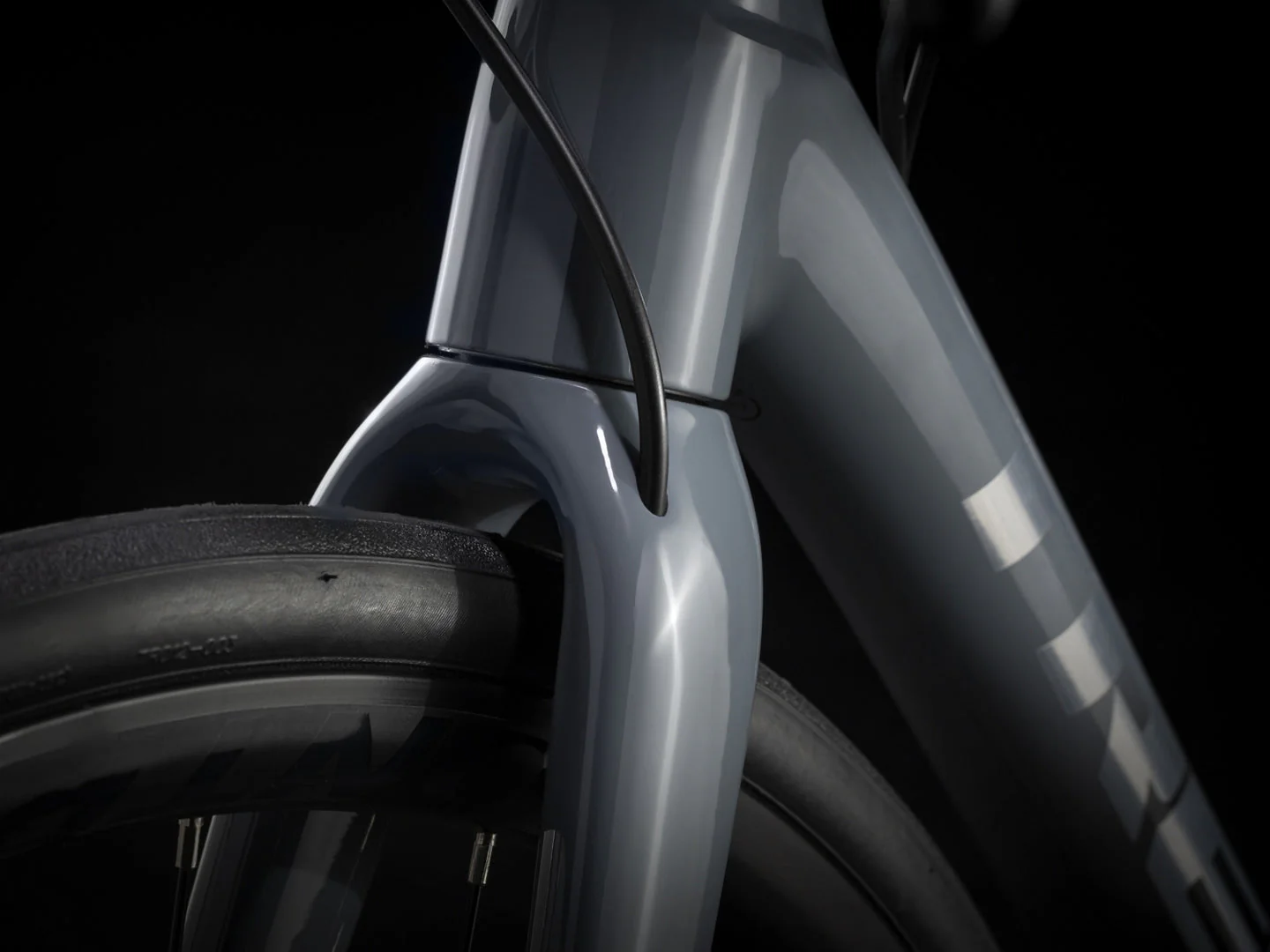

| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Frame fit | H2 |
COMPONENTS
| *Saddle | Size: 47, 50, 52 Bontrager P3 Verse Comp, steel rails, 155mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager P3 Verse Comp, steel rails, 145mm width |
|
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| *Handlebar | Size: 47, 50, 52 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width |
| Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width |
|
| Size: 58, 60, 62 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Size: 50 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
| Size: 60, 62 Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
|
| Size: 60, 62 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake rotor | Shimano SM-RT70, centerlock, 160mm |
WEIGHT
| Weight | 56 - 9.04 kg / 19.92 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
DRIVETRAIN
| Shifter | Shimano 105 R7020, 11 speed |
|---|---|
| Front derailleur | Shimano 105 R7000, braze-on |
| Rear derailleur | Shimano 105 R7000, short cage, 30T max cog |
| *Crank | Size: 47, 50, 52 Shimano 105 R7000, 50/34 (compact), 170mm length |
| Size: 54, 56 Shimano 105 R7000, 50/34 (compact), 172.5mm length |
|
| Size: 58, 60, 62 Shimano 105 R7000, 50/34 (compact), 175mm length |
|
| Bottom bracket | Shimano BB71, 86.5mm, PressFit |
| Cassette | Shimano 105 R7000, 11-30, 11 speed |
| Chain | Shimano 105 HG601, 11 speed |
WHEELS
| Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve |
| Spokes | 14g stainless steel |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x25c |
| Max tire size | 28c Bontrager tires (with at least 4mm of clearance to frame) |
|
Size |
Rider Height |
Inseam |
|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
|
49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
|
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
|
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
|
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
|
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
|
61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
