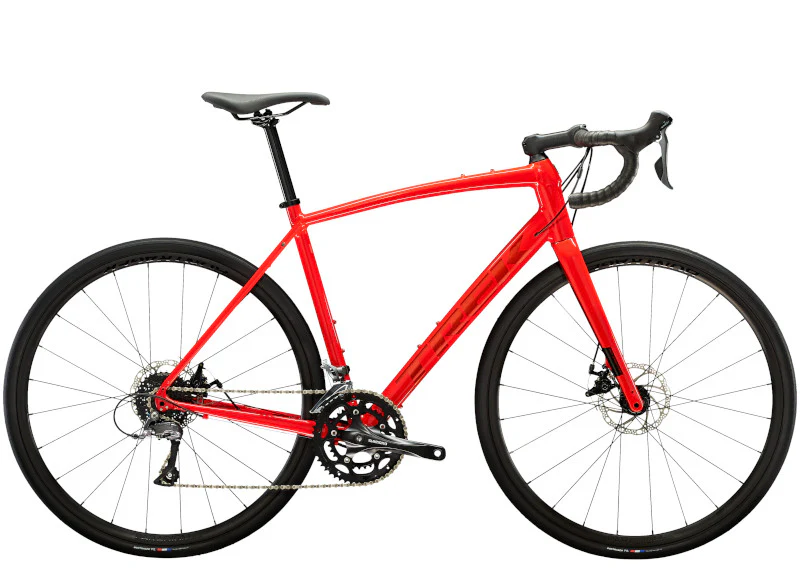

Domane AL 2 Disc is an awesome pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence inspiring ride. Plus, it's built with reliable parts and disc brakes that provide better stopping power in any weather. Best of all, the comfort-focused design makes every single ride more enjoyable.
You’re just getting into riding, and want an amazing first bike that'll open up the world of road cycling to you. You want one that's versatile, comfortable, affordable, and built with disc brakes for all-weather stopping power.
Lightweight aluminum frame with mounts for fenders and a carbon fork—features that are not typically available in road bikes at this price point. The Shimano drivetrain has 16 speeds, with shifters that are integrated into the brake levers so your hands never have to leave the bars. The wide range of gears makes it easier to ride terrain that varies in elevation. Plus, sturdy Bontrager wheels, puncture-resistant tires, and disc brakes.
Hit the open road on the perfect bike for getting into road riding. Its comfort-first design is fast yet stable, it comes with reliable parts, and has disc brakes that perform well in any weather.
*spec applies to all sizes unless otherwise noted
FRAMESET
Frame

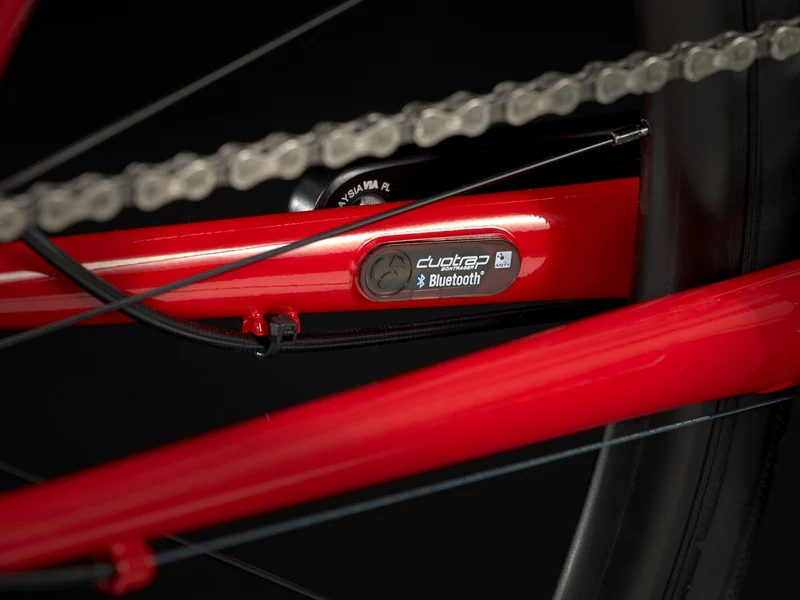

100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit
Endurance
WHEELS
|
Hub front |
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
|
Skewer front |
Bontrager Switch thru axle, removable lever |
|
Hub rear |
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
|
Skewer rear |
Bontrager Switch thru axle, removable lever |
|
*Rim |
Size: 44, 49, 52, 54, 56, 58, 61 |
|
Size: 44, 49, 52, 54, 56, 58, 61 |
|
|
Spokes |
14g stainless steel |
|
Tire |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
|
Max tire size |
35c without fenders, 32c with fenders |
DRIVETRAIN
|
Shifter |
Shimano Claris R2000, 8 speed |
|
Front derailleur |
Shimano Claris R2000, 31.8mm clamp |
|
Rear derailleur |
Shimano Claris R2000, long cage, 34T max cog |
|
*Crank |
Size: 44 |
|
Size: 49, 52, 54 |
|
|
Size: 56, 58, 61 |
|
|
Bottom bracket |
Shimano UN30, 68mm, threaded cartridge, 110mm spindle |
|
Cassette |
Shimano HG31, 11-32, 8 speed |
|
Chain |
Shimano Sora HG71, 8 speed |
COMPONENTS
|
*Saddle |
Size: 44, 49, 52 |
|
Size: 54, 56, 58, 61 |
|
|
*Seatpost |
Size: 44, 49 |
|
Size: 52, 54, 56, 58, 61 |
|
|
*Handlebar |
Size: 44, 49 |
|
Size: 52 |
|
|
Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width |
|
|
Size: 58, 61 |
|
|
Handlebar tape |
Bontrager Supertack Perf tape |
|
*Stem |
Size: 44 |
|
Size: 49 |
|
|
Size: 52, 54 |
|
|
Size: 56, 58 |
|
|
Size: 61 |
|
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
|
Brake |
Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor |
WEIGHT
|
Weight |
56 - 10.55 kg / 23.26 lbs |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
**Trek Bikes reserves the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
|
49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
|
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
|
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
|
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
|
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
|
61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
