X-Caliber 9 is the top-end model in the X-Caliber family. It's a fully race-ready cross-country mountain bike built with parts designed to compete. A RockShox Recon fork, a 1x12 Shimano XT/SLX drivetrain and a wide-range cassette make it a great choice for fast singletrack riders who want a great bike that's ready to race straight out of the box.
*spec applies to all sizes unless otherwise noted
FRAMESET

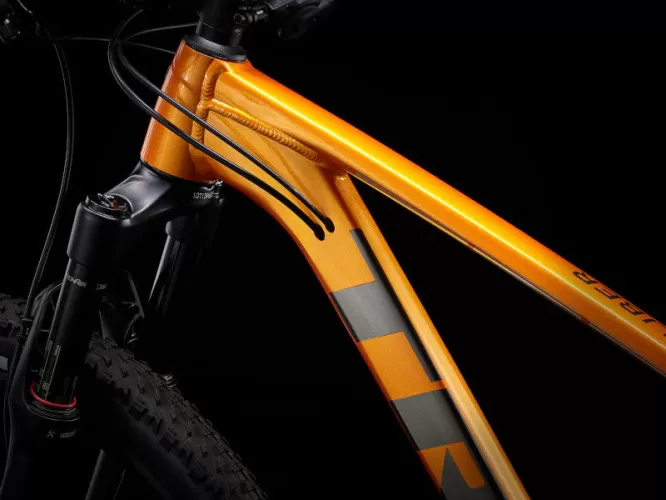

| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR |
|---|---|
| *Fork | Size: XS , S RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 37 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel |
| Size: M , ML , L , XL , XXL RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel |
|
| Max compatible fork travel | 120mm (XS: 100mm) |
COMPONENTS
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S , M TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: ML , L , XL , XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S , M Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
| Size: M , ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
| Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: XL , XXL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Head set | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
| Brake | Shimano hydraulic disc, MT4100 lever, MT410 calliper |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT56, 6-bolt, 180 mm |
| Size: XS , S , M , ML , L , XL , XXL Shimano RT56, 6-bolt, 160 mm |
WEIGHT
| Weight | M - 27.60 lb / 12.52 kg (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank | Size: XS , S , M Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 170 mm length |
| Size: ML , L , XL , XXL Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 175 mm length |
|
| Bottom bracket | Shimano SM-BB52, 73 mm, threaded external bearing |
| Cassette | Shimano SLX M7100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 32T |
WHEELS
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| *Tyre | Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35" |
| Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
|
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
|
M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
|
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
|
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
|
2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
