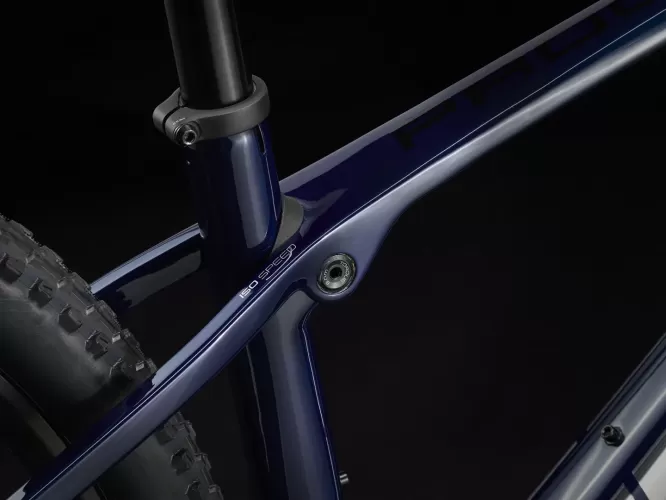

Procaliber 9.6 is a race-ready cross country hardtail. Its fast carbon frame boasts a trail-taming IsoSpeed decoupler, quick-rolling 29er wheels and a RockShox Recon Gold RL suspension fork to keep you fast and smooth over roots and rocks during your most demanding mountain bike rides.
*spec applies to all sizes unless otherwise noted
FRAMESET
| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148 |
|---|---|
| Fork | RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel |
| Suspension lever | RockShox OneLoc Sprint |
| Max compatible fork travel | 120mm (533 axle-to-crown) |
DRIVETRAIN
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank | Size: S Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 170 mm length |
| Size: M , ML , L , XL , XXL Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 175 mm length |
|
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano SLX M7100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 36T, Min 30T |
WEIGHT
| Weight | M – 25.07 lb / 11.37 kg (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
COMPONENTS
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: S Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length |
| Size: M , ML , L , XL , XXL Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length |
|
| *Handlebar | Size: S , M , ML Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Size: L , XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Size: XXL Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width |
|
| Grips | Herrmans Clik |
| *Stem | Size: S , M Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length |
| Size: ML Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
|
| Size: L , XL Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length |
|
| Size: XXL Bontrager Elite, 35 mm, 0-degree, 90 mm length |
|
| Head set | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano hydraulic disc, MT4100 lever, MT410 calliper |
| *Brake rotor | Size: S , M , ML , L , XL , XXL Shimano RT56, 6-bolt, 180 mm |
| Size: S , M , ML , L , XL , XXL Shimano RT56, 6-bolt, 160 mm |
WHEELS
| Wheel front | Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Wheel rear | Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148 |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40" Fork: See manufacturer |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
|
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
|
M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
|
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
|
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
|
2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
