Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It offers the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and precise Shimano Deore shifting.
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|

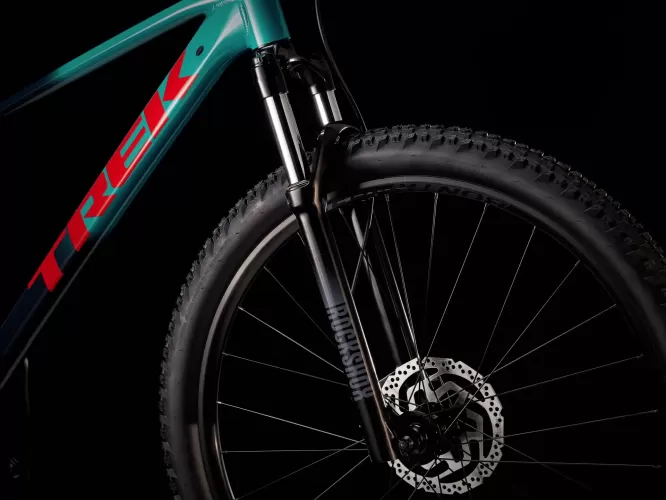

| *Fork | Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
WHEELS
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | Bontrager Switch thru axle |
| *Rim | Size: XS , S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
|
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
DRIVETRAIN
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|

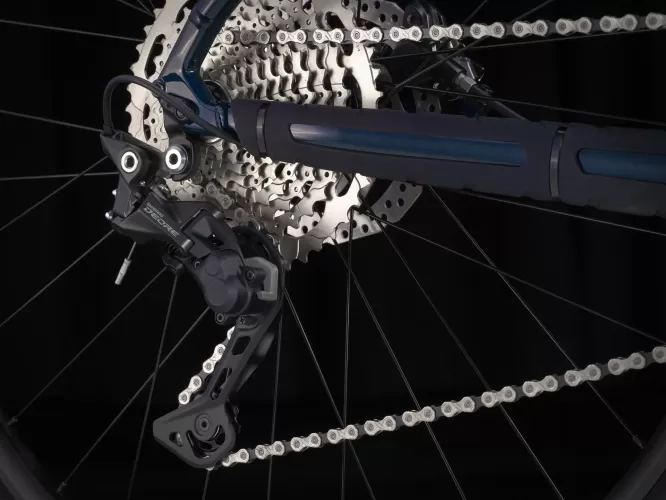

| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank | Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170 mm length |
| Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, Boost, 175 mm length |
|
| Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
COMPONENTS
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |

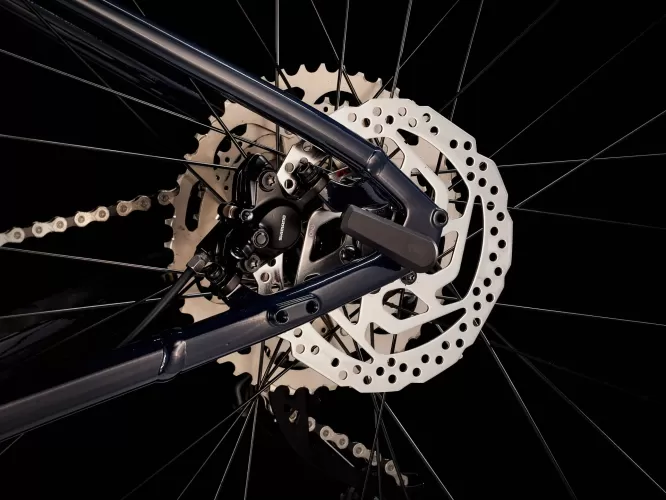

| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm |
| Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
WEIGHT
| Weight | M - 14.60 kg / 32.19 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
|
Size |
Rider Height |
Inseam |
|
XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
|
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
|
M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
|
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
|
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
|
2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
