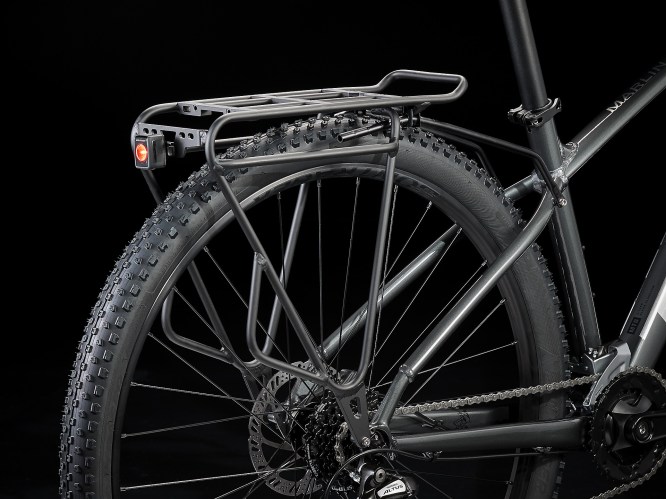

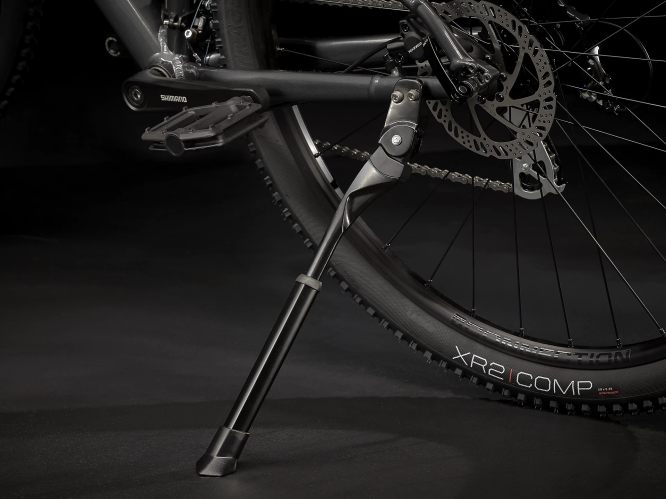

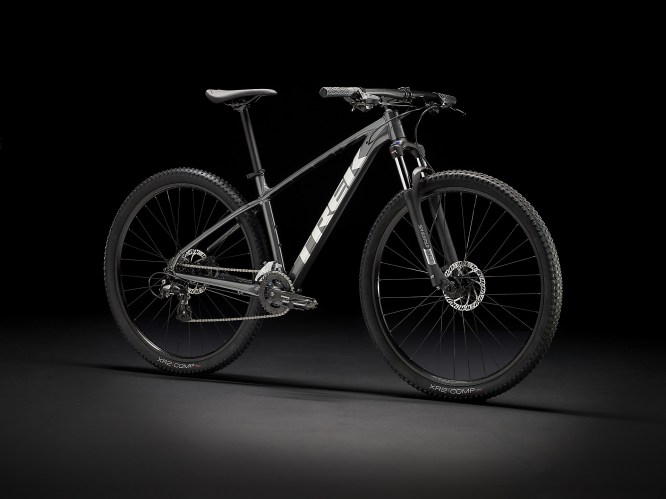

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
*spec applies to all sizes unless otherwise noted**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.
**Weights are based off pre-production products at time of publication. Weights may vary in final production.
FRAMESET

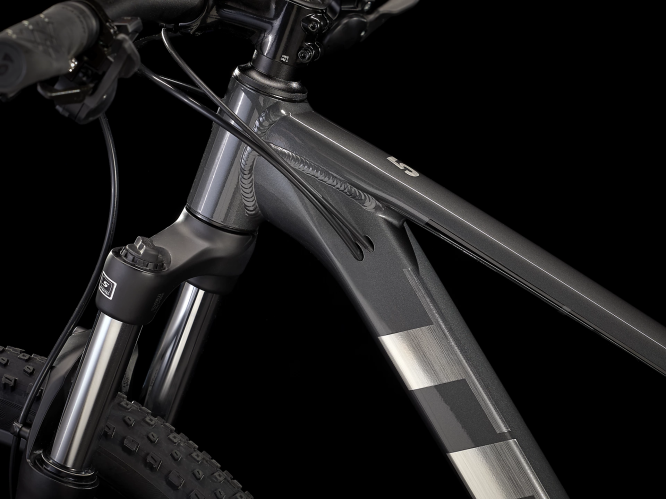

| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|

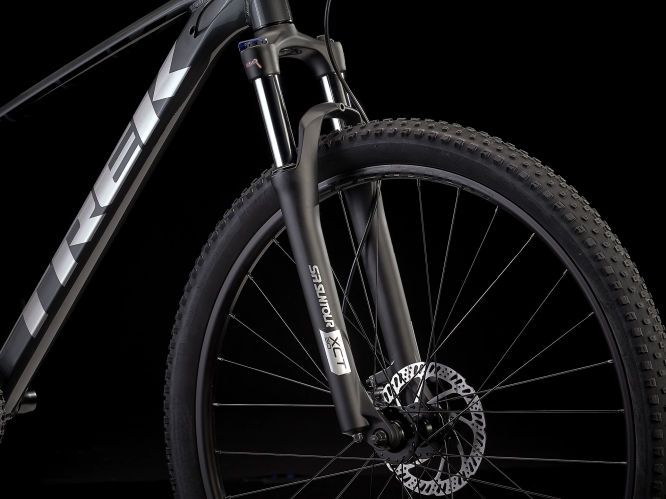

| *Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
| Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
COMPONENTS
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
| Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|

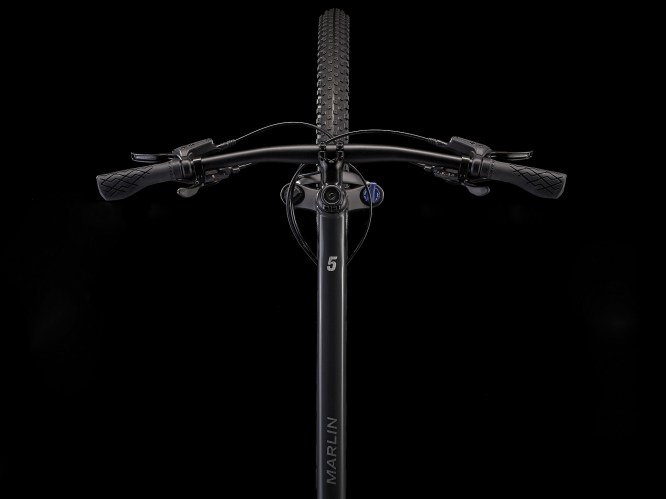

| *Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
| Grips | Bontrager XR Endurance Comp |
| *Stem | Size: XXS Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length |
| Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
| Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length |
|
| Head set | Semi-integrated, 1-1/8" |

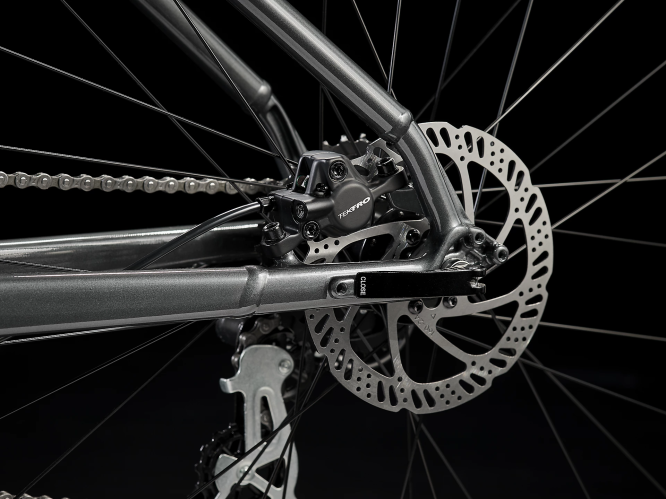

| Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Weight | M - 13.97 kg / 30.81 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano Altus M315, 8-speed |
|---|---|
| Front derailleur | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |

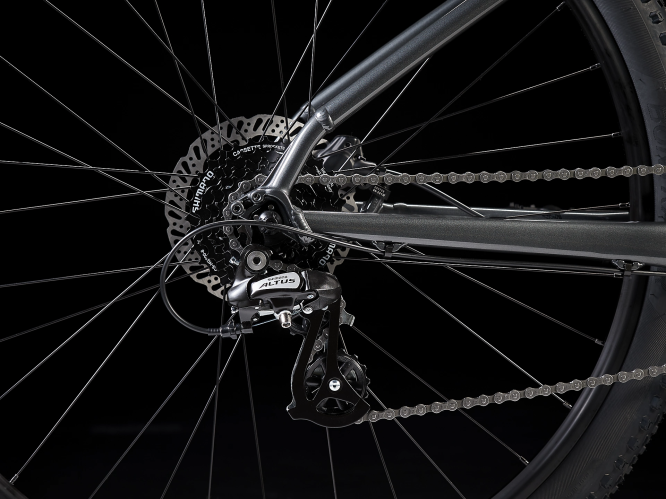

| Rear derailleur | Shimano Altus M310 |

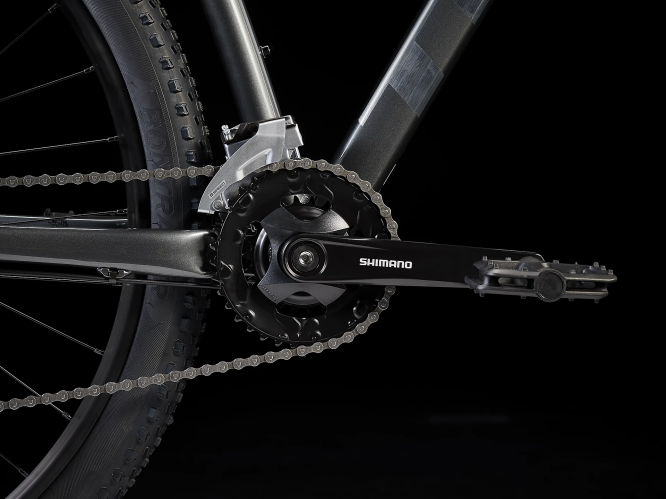

| *Crank | Size: XXS Prowheel TM-CY10, 36/22, 160 mm length |
| Size: XS , S , M Shimano M315, 36/22, 170 mm length |
|
| Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length |
|
| Bottom bracket | Sealed cartridge, 73mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3, 8 speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x/2x: 34T, 3x: 42T |
WHEELS
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| *Rim | Size: XXS Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve |
| Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
| Spokes | 14 g stainless steel |

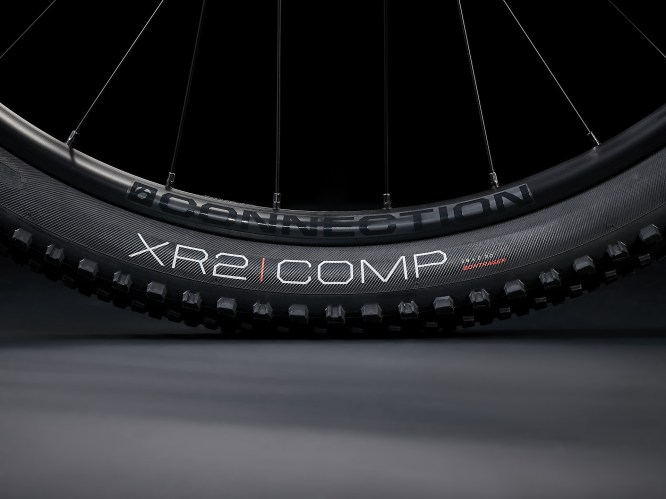

| *Tyre | Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20" |
| Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" |
|
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
|
| Max tyre size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
